B3057 00

B3057 00

Control Module not Added







Fault symptom
- Messages shown in SID.
- Engine may not start.

On-board diagnosis

Type of diagnosis:
- Diagnostics carried out after security code is programmed and during "reset".

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- Security code for CIM not programmed.

System reaction to a fault:

Diagnostic help

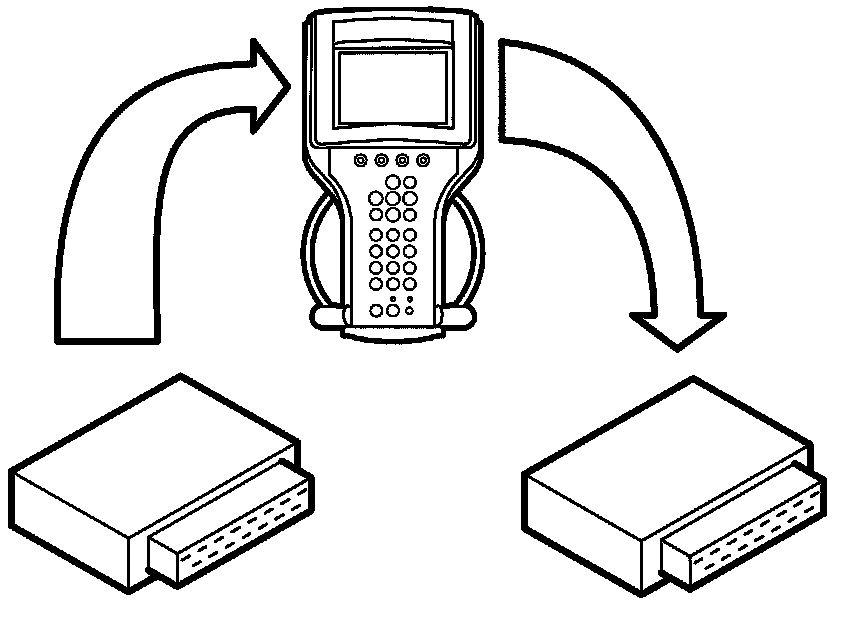

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
