B2919

B2919 00

ICM, Internal Failure







On-board diagnosis

Type of diagnosis:
- Diagnostics carried out after security code is programmed and during "reset".

Enable criteria:
- Ignition ON.

Fault criteria:
- Immobilizer code cannot be programmed in ICM.

System reaction to a fault:
- None

Diagnostic help

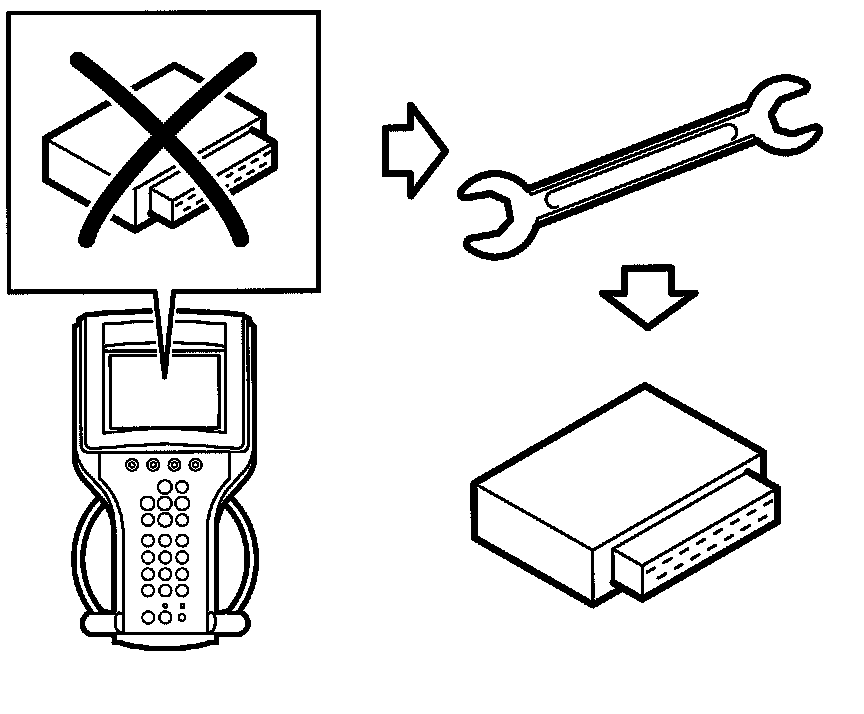

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
