B2915

B2915 00

ICM Missing on Bus or Not Added







On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics run when ignition is ON.

Fault criteria:
- No immobilisation code received from ICM.

Diagnostic help
- Diagnostic trouble code can be generated if there is no voltage to ICM.

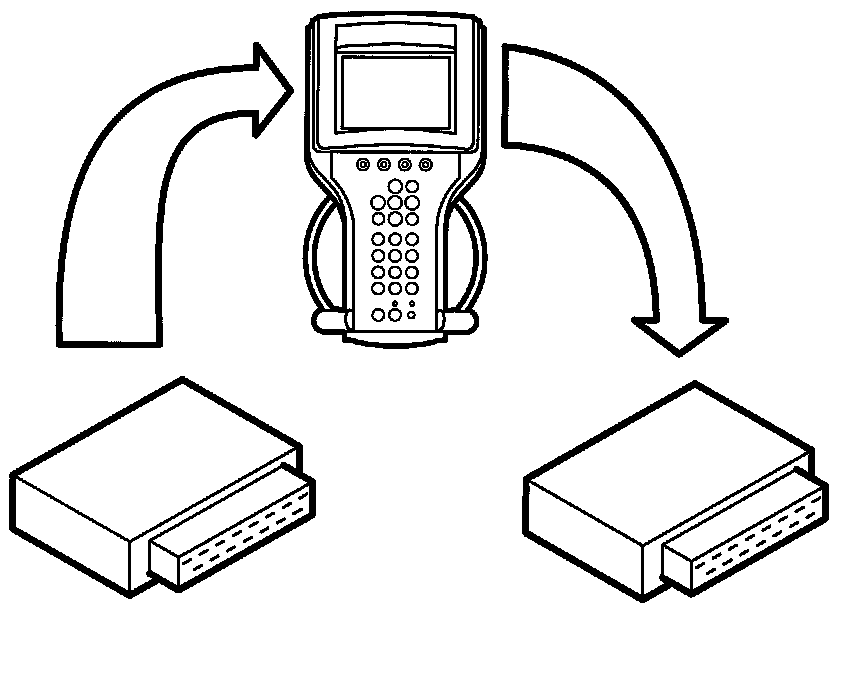

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
