B2821 61

B2821 61

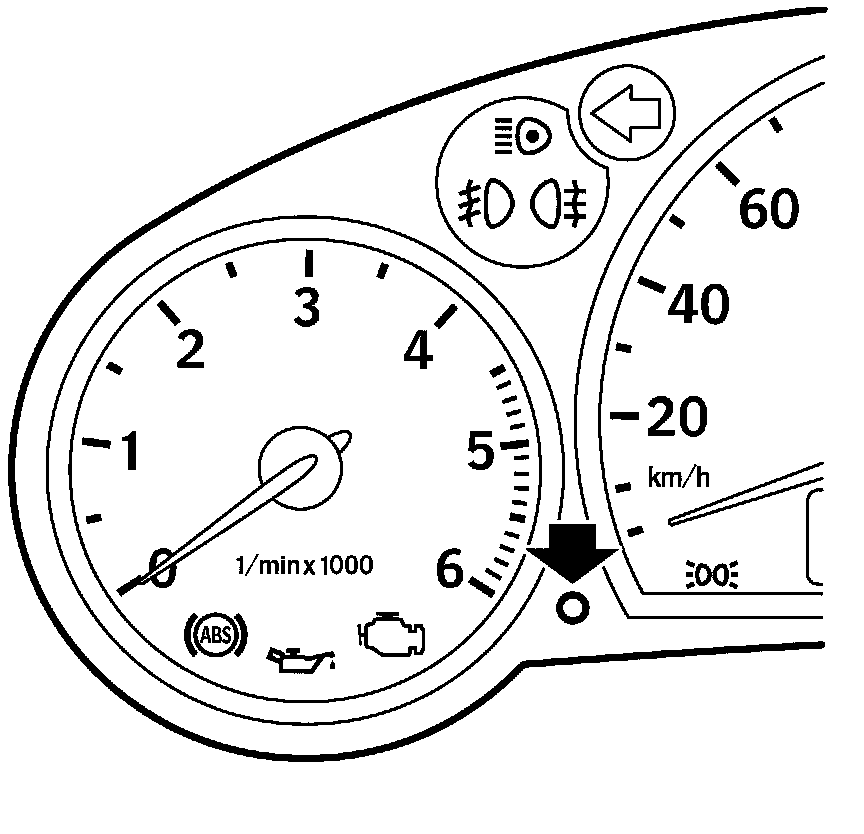

Trip Odometer Switch, Button Stuck







Fault symptom
- Trip odometer cannot be reset.

On-board diagnosis

Type of diagnosis:
- Diagnostics runs when the Reset button is depressed.

Enable criteria:
- Ignition ON.

Fault criteria:
- Reset button is stuck in the depressed position.

Diagnostic help

Diagnosis regards:
- Mechanical fault (button stuck) or internal fault in MIU.
