B2698 04

B2698 04

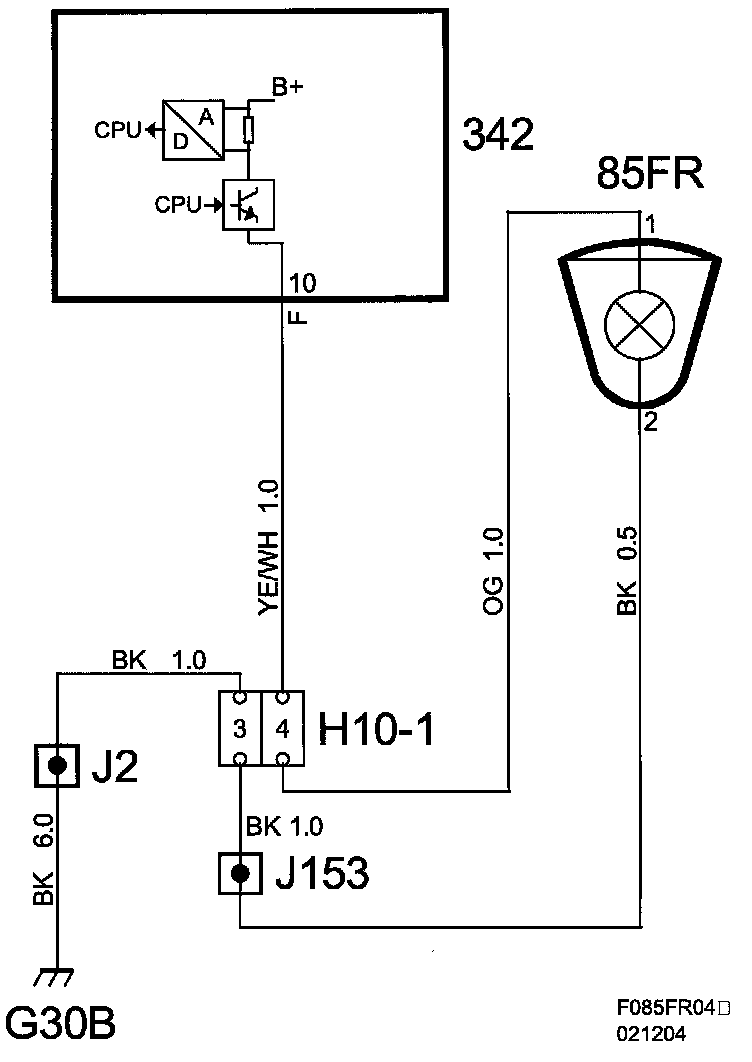

Fog Light Front Right Circuit, Open







Fault symptom
- Right front fog lights, malfunction.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Front fog lights on.

Fault criteria:
- Current consumption is below 1.0 A

System reaction to a fault:
- None

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Activation:
- Fog Light Front Right
