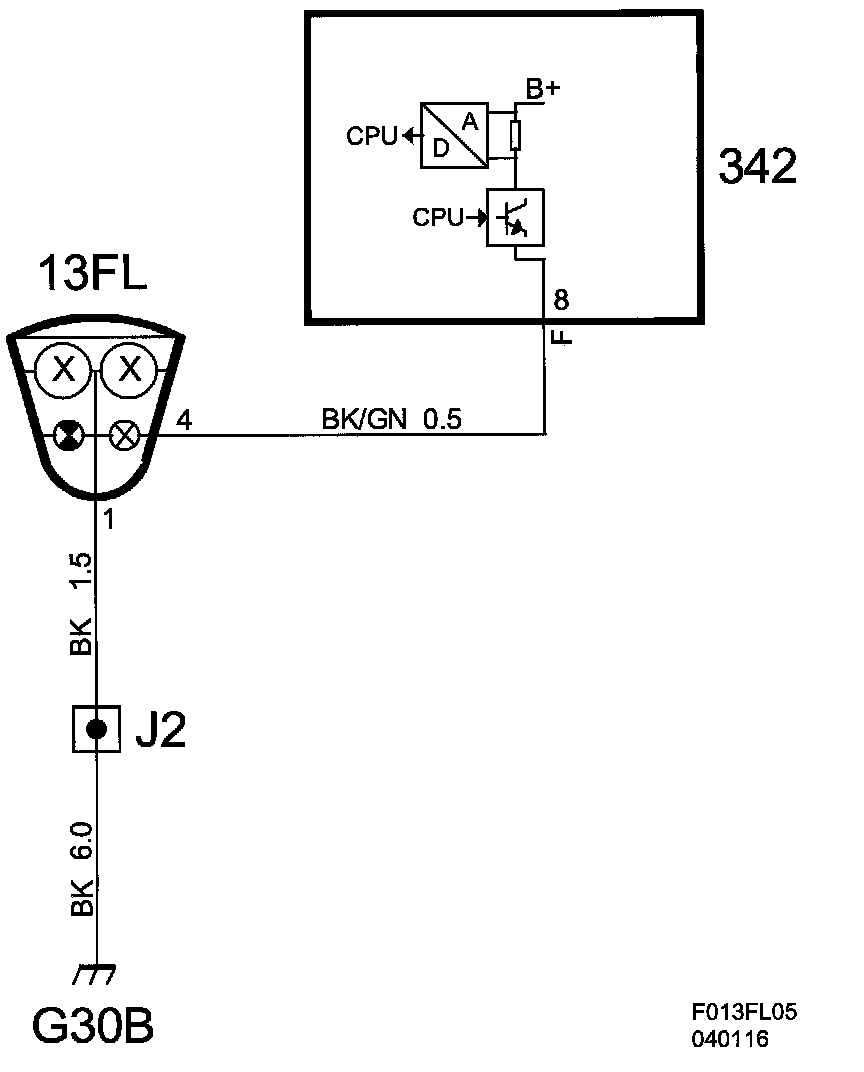

Parking Light Left Front Circuit, Short to Ground







Fault symptom
- Left front parking lights, malfunction.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Light switch in position 1.

Fault criteria:
- Current consumption greater than 6 A for more than 6 ms

System reaction to a fault:
- Control module output is switched off.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Activation:
- Parking Light Left Front
