B2575 05

B2575 05

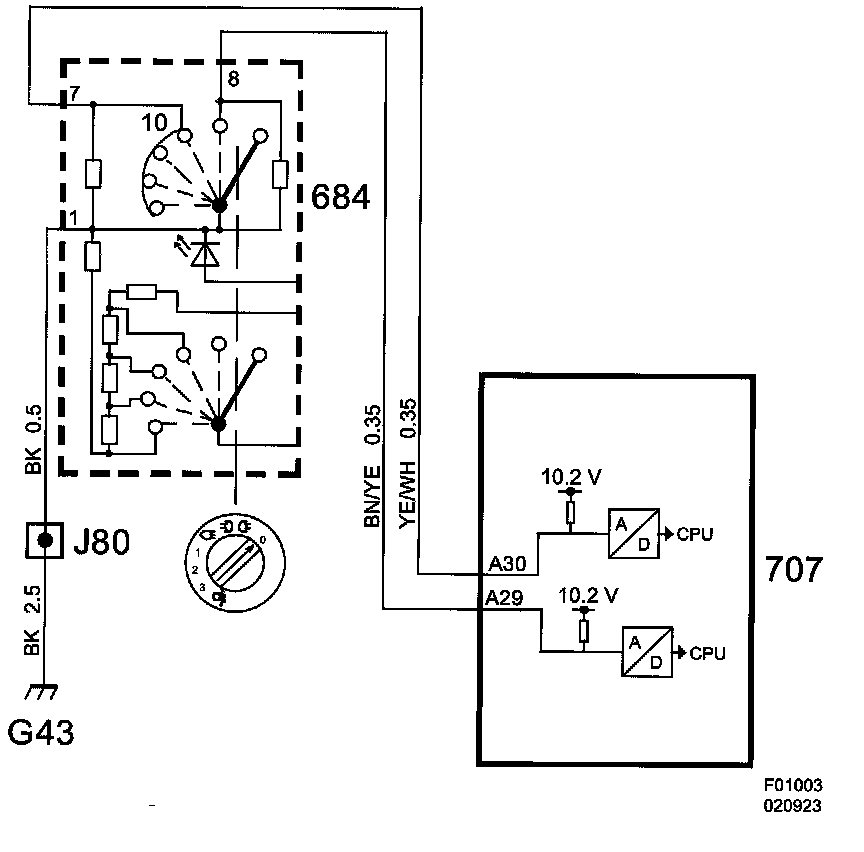

Light Switch Position 2 Circuit, Open/Short to B+







Fault symptom
- Dipped beam on irrespective of position of light switch.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- When voltage on output exceeds 10.2V.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Light Switch Position 2
(See also description of readings/activations in diagnostic tool)
