B2540

B2540 05

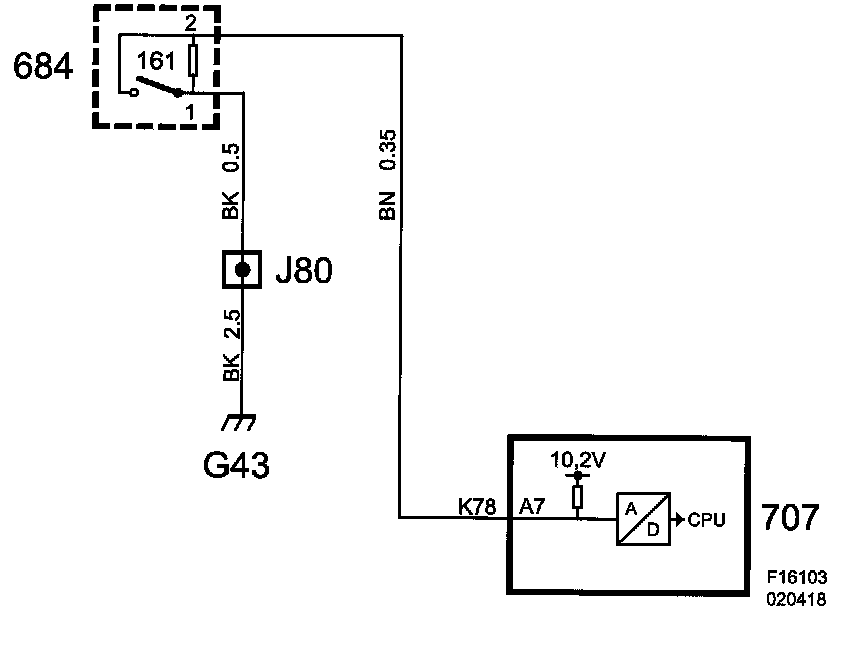

Rear Fog Light Button Circuit, Open/Short to B+







Fault symptom
- Rear fog lights not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- When voltage on output exceeds 10.2V.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Rear Fog Lights Switch
(See also description of readings/activations in diagnostic tool)
