B2375 29

B2375 29

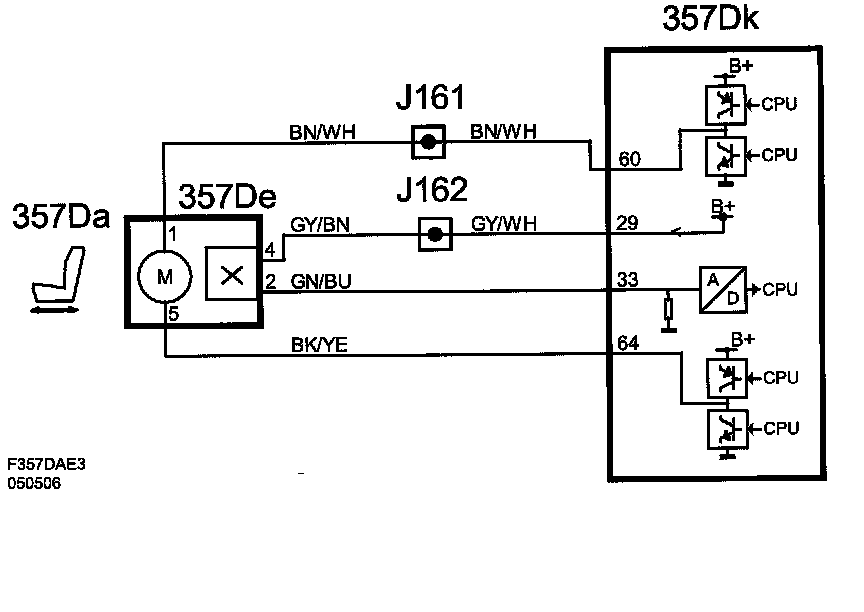

Slide Position Sensor Circuit, No Pulses







Fault symptom
- Memory functions not working
- The control module loses end position calibration for the motor in question.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Turn Ignition On

Fault criteria:
- No signal from position sensor while engine running.

System reaction to a fault:
- No memory functions work
- The control module loses end position calibration for the motor in question.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Slide Sensor
- Slide Position
(See also description of readings/activations in diagnostic tool)
