B2365 01 - 01

B2365 01

Position Sensor Power Supply Circuit, Short to B+







Fault symptom
- Memory functions not working
- Seat can jerk during start and stop.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- At least one of the control module sensor inputs has voltage higher than 1.1 ± 0.2 V when the output is off.

System reaction to a fault:
- No memory functions work
- The control module loses end position calibration for the motor in question.

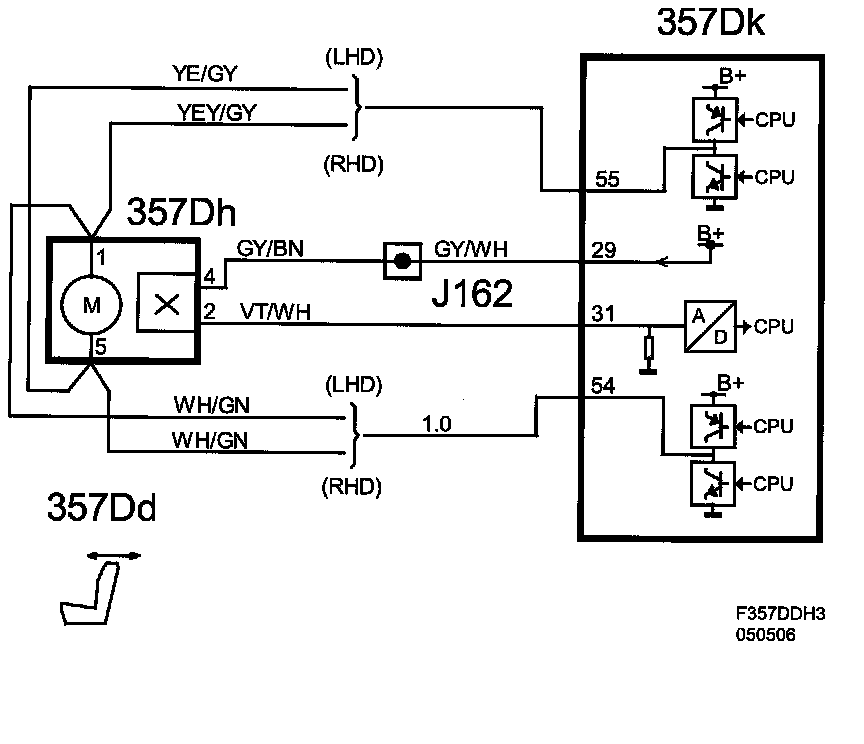

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
