B1583 01 - 01

B1583 01

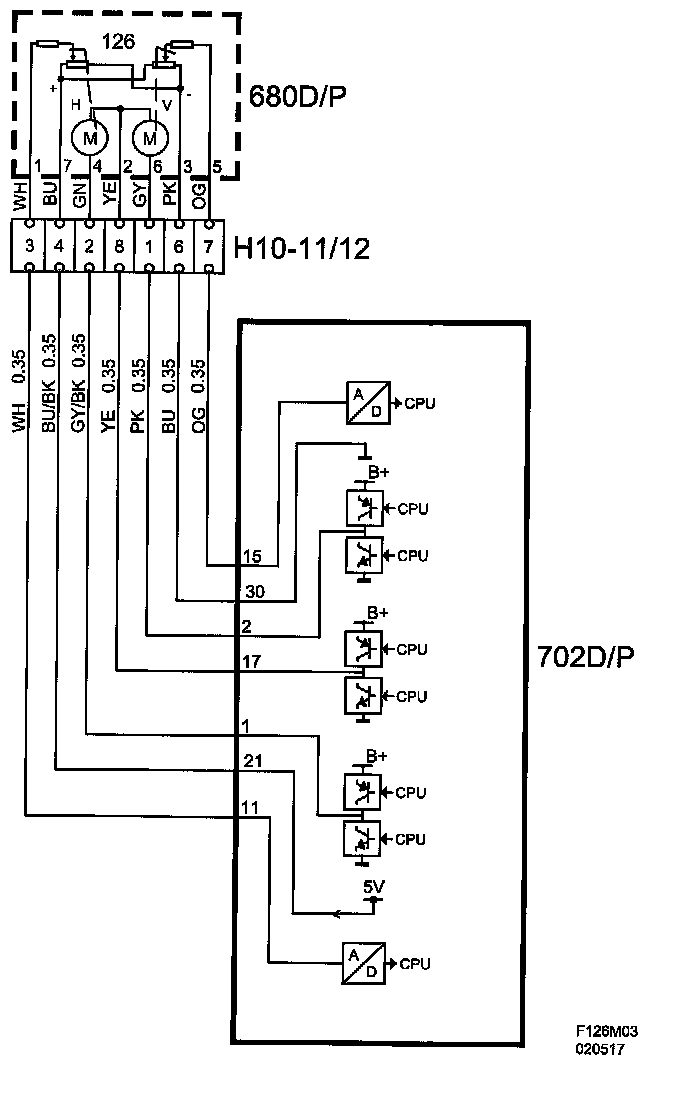

Mirror Potentiometer Supply Circuit, Short to B+







Fault symptom
- Memory functions not working
- Tilt out of order.
- Manual electric mirror operation working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

- The following DTCs are generated at the same time as this DTC:
B3355, B3832
- NONE of the following DTCs must be detected:
B1585, B1595

Fault criteria:
- Fault criteria NOT fulfilled.

System reaction to a fault:
- Memory functions not working
- Tilt out of order.
- Manual electric mirror operation working.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Mirror Potentiometer Left/Right Driver Door
(See also description of readings/activations in diagnostic tool)
