B1425 00 - 01

B1425 00

Battery Voltage. Too High.







Fault symptom
- Airbag warning lamp on

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Turn Ignition On

Fault criteria:

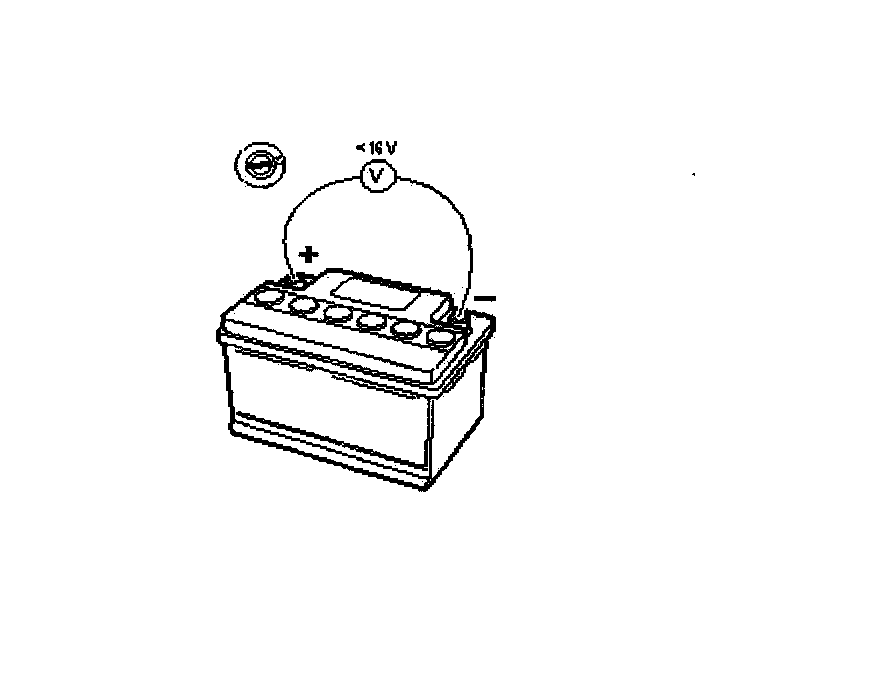

- Battery voltage exceeds 16 V.

System reaction to a fault:
- The airbag system should be considered non-operational. There may, however, be some functionality.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.
- Check the connector for oxidation or loose pins. Jiggle also the wiring harness at several points to detect intermittent breaks or short circuits.
