B1368 0F

B1368 0F

+B Circuit, Short to B+







Fault symptom
- Steering column lock not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Starter motor cranking.

Fault criteria:
- Control module input short circuit to B+.

System reaction to a fault:
- Steering column lock deactivated.

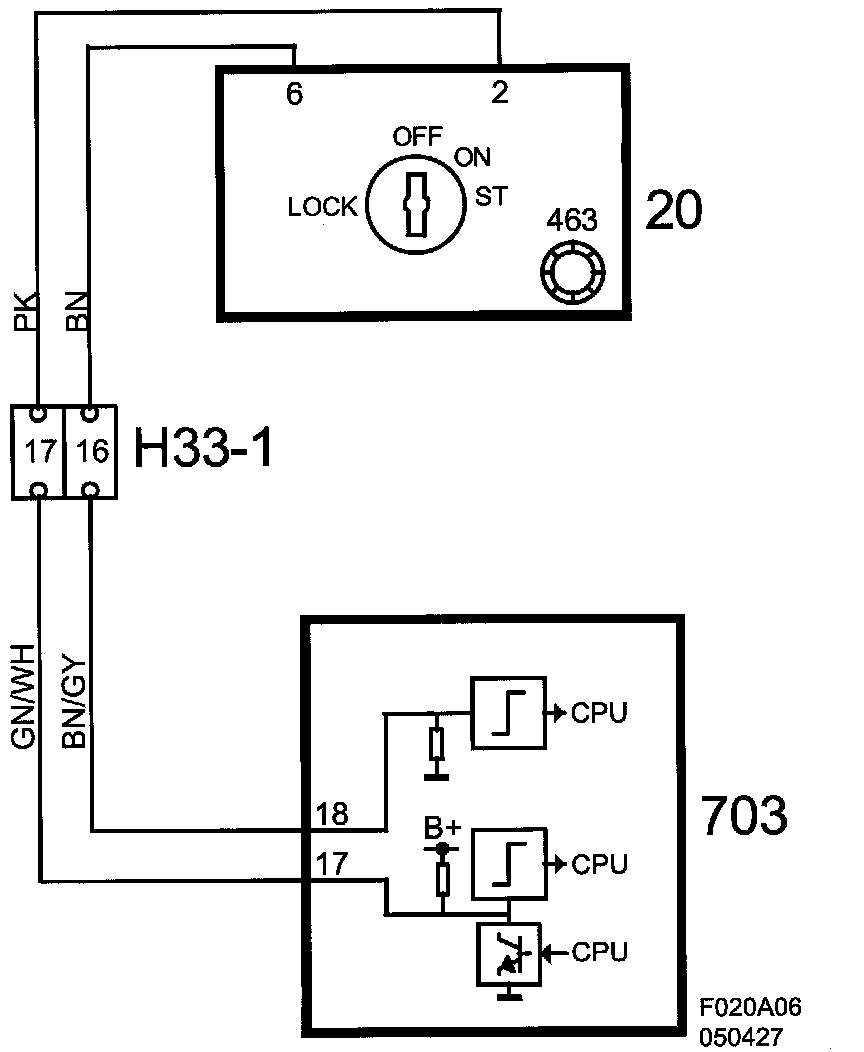

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Ignition Switch +B, K-Line from ISM
(See also description of readings/activations in diagnostic tool)
