B1350 02

B1350 02

Sensor Feed. Short to Ground.







Fault symptom
- Message "Parking assistance out of order" shown in SID.
- SPA stops all measurements and the acoustic signals from SID for SPA are switched off.

On-board diagnosis

Type of diagnosis:

Enable criteria:
- Ignition ON.
- Reverse gear selected

Fault criteria:
- When voltage on output is below 7.2 V.

System reaction to a fault:
- Control module stops measurement and is set to standby mode.

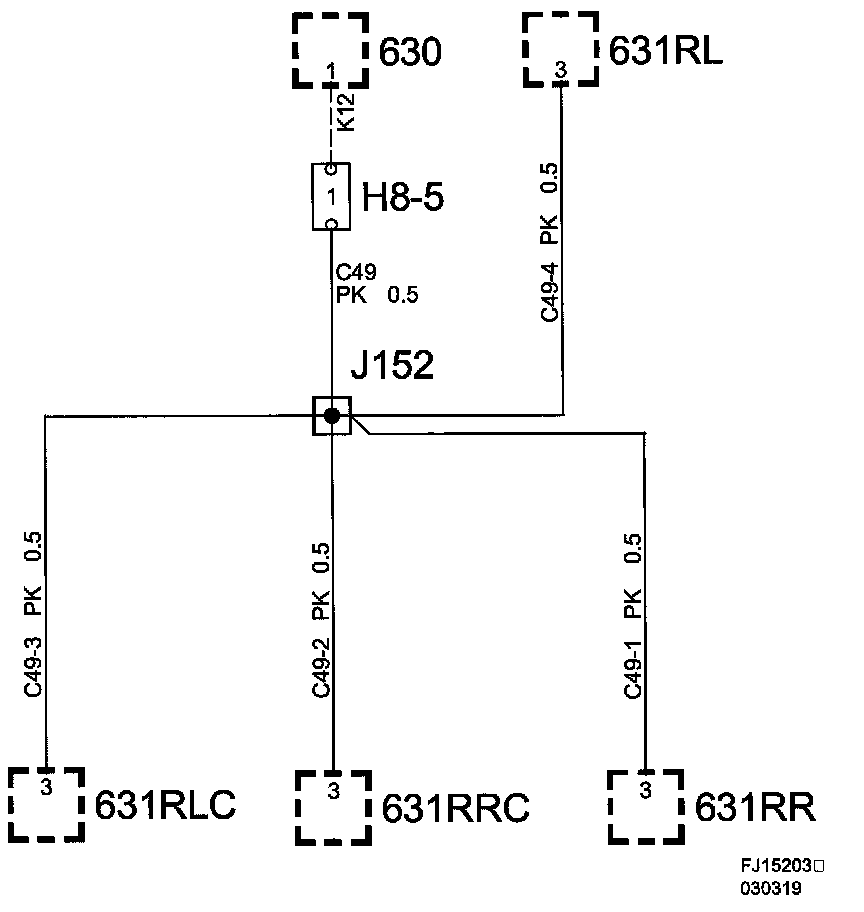

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Fault diagnosis refers to electrical faults in connected leads or the distance sensors.

Functions in the diagnostic tool related to the fault:

See Reading:
- Sensor Feed
