B1339 00 - 02

B1339 00

+30 Power Feed Missing







Fault symptom
- Electric window lift cannot be operated.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Diagnostics run when power window is operated.

System reaction to a fault:
- Electric window lift cannot be operated.

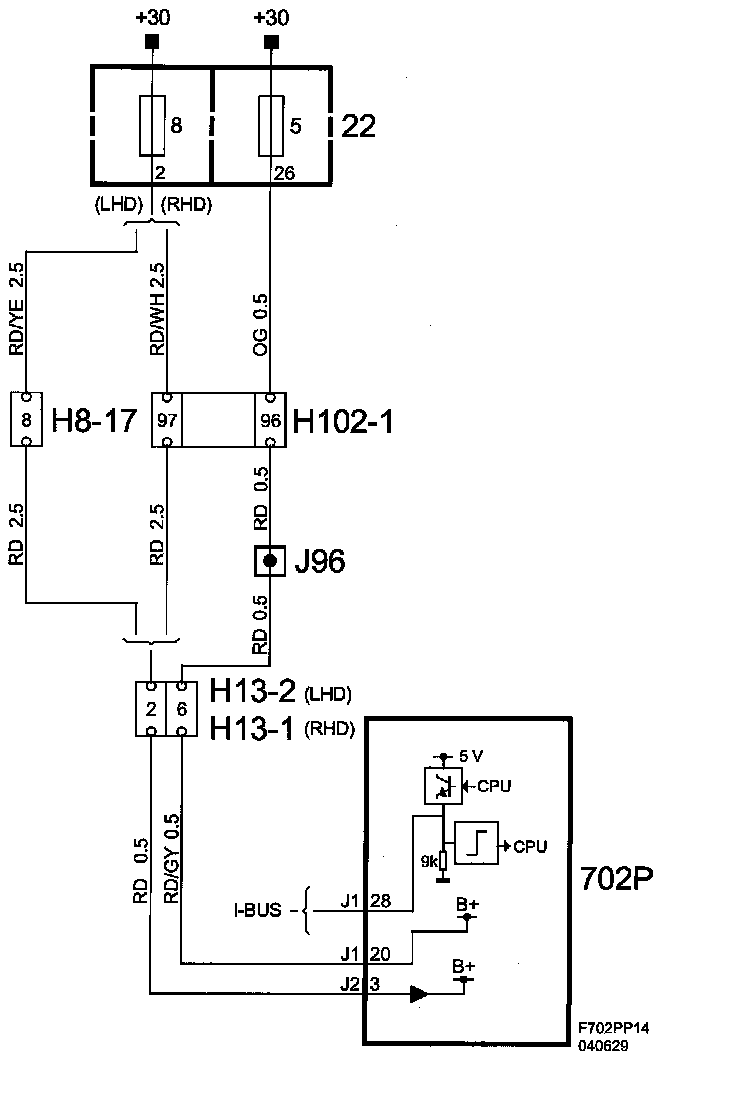

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.
