B1339 00 - 01

B1339 00

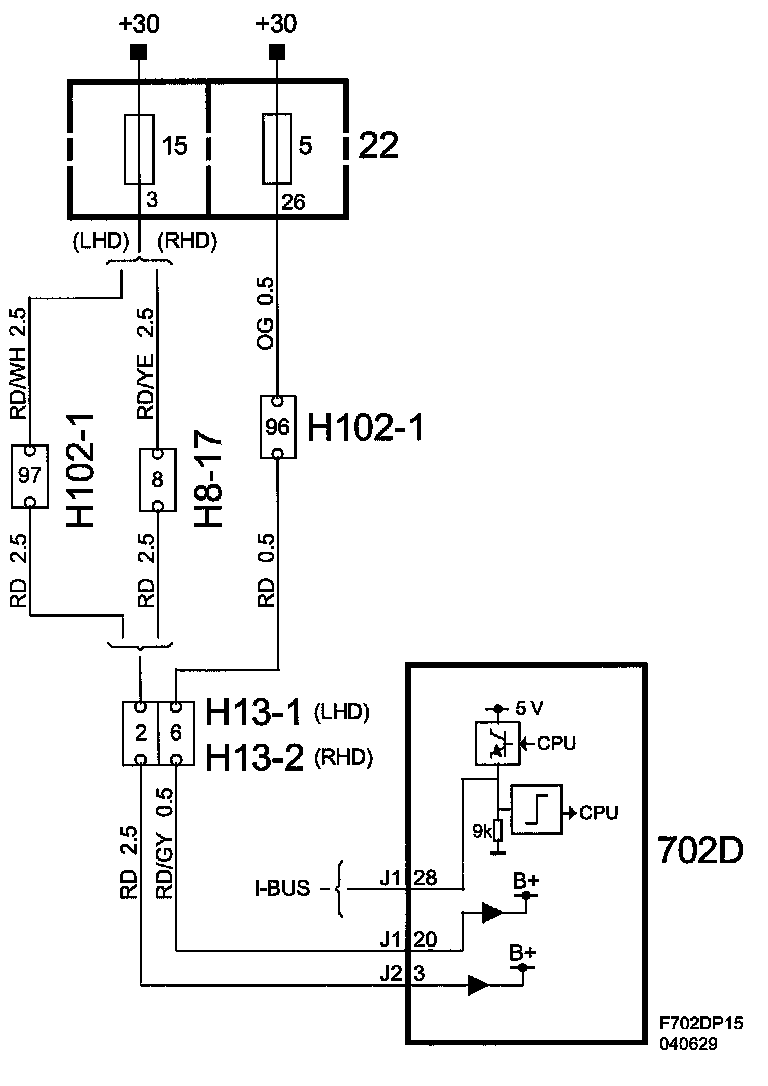

+30 Power Feed Missing







Fault symptom
- Electric window lift cannot be operated.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Diagnostics run when power window is operated.

Fault criteria:
- Voltage is less than 6 V.

System reaction to a fault:
- Power mirror cannot be operated

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.
