B1300 06

B1300 06

1st Bow Latched, Position Sensor Circuit, Short to Ground







Fault symptom
- Messages shown in SID.
- Soft top cannot be operated

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module input voltage is below 0.2 V ± 0.2 V

System reaction to a fault:
- Soft top cannot be operated

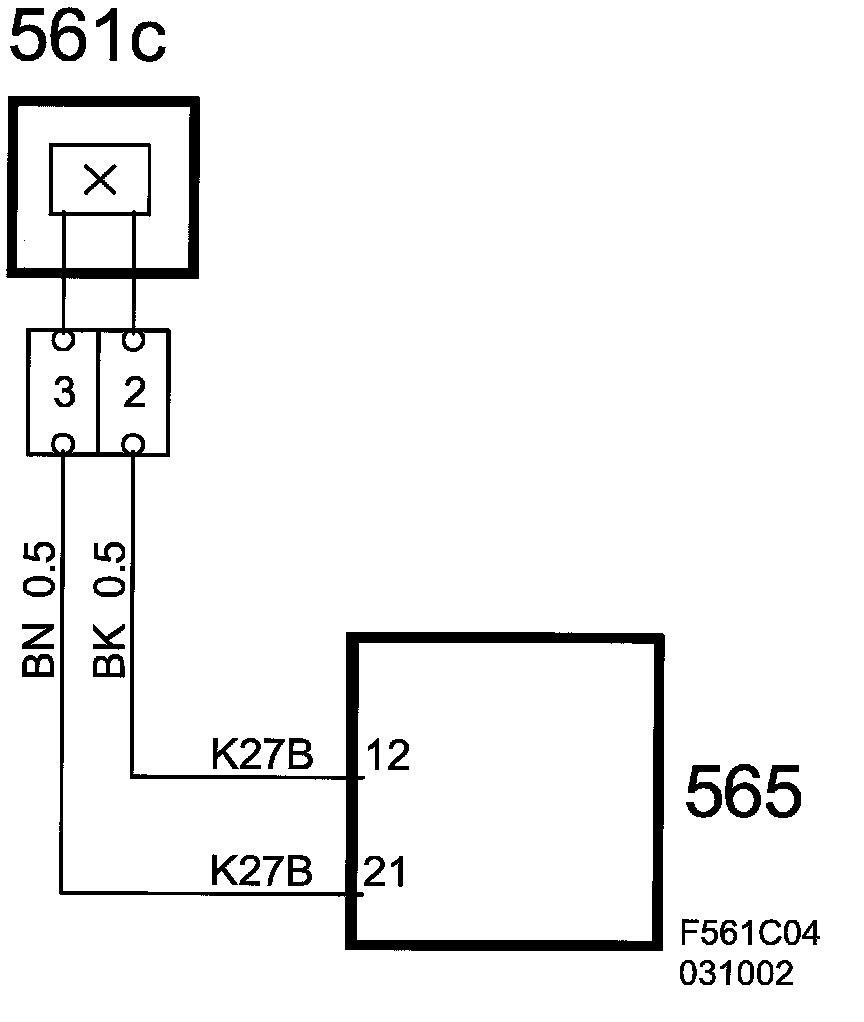

Checking the wiring harness
- Jiggle the wiring harness at several points to detect intermittent breaks or short circuits. Check also the connector for oxidation or loose pins.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- 1st Bow Locked
(See also description of readings/activations in diagnostic tool)
