B1261

B1261 02

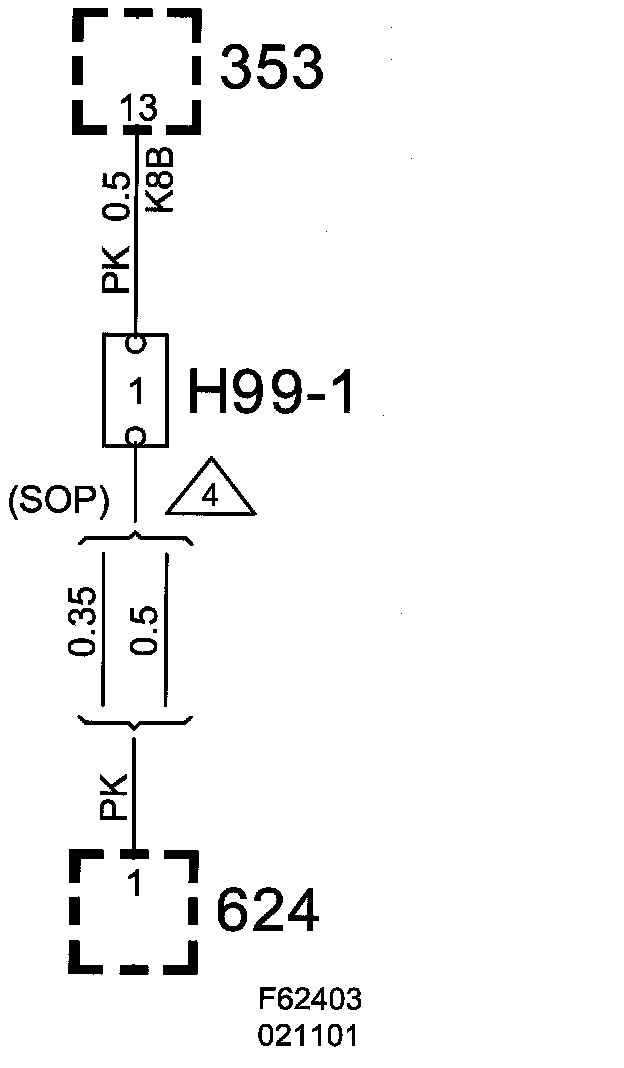

Antenna Circuit, Short to Ground







Fault symptom
- Poor/no reception.

On-board diagnosis

Enable criteria:
- Ignition ON.

Fault criteria:
- Current too high.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
