B1016 00 - 05

B1016 00

Control Module not Added







Fault symptom
- Car does not start.

On-board diagnosis

Type of diagnosis:
- Diagnostics runs each time the control module is active and when programming has been carried out.

Enable criteria:
- Ignition ON.

Fault criteria:
- VIN not programmed.

Diagnostic help
- Control module not configured.

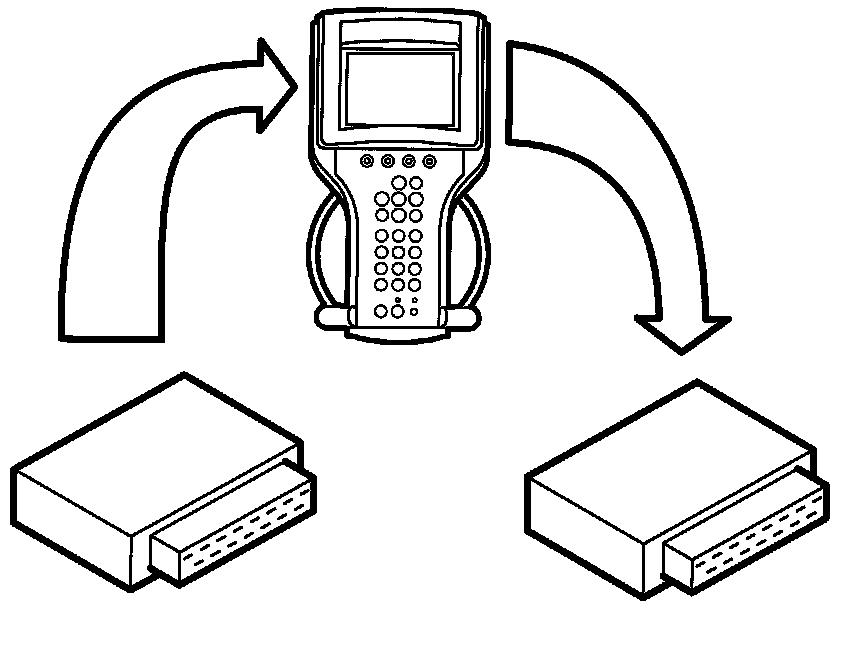

- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
