B1016 00 - 02

B1016 00

Control Module not Added







Fault symptom
- Error message is shown on the display.

On-board diagnosis

Type of diagnosis:
- Diagnostics runs each time the control module is active and when programming has been carried out.

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module not configured.

Diagnostic help
- Control module was not added.

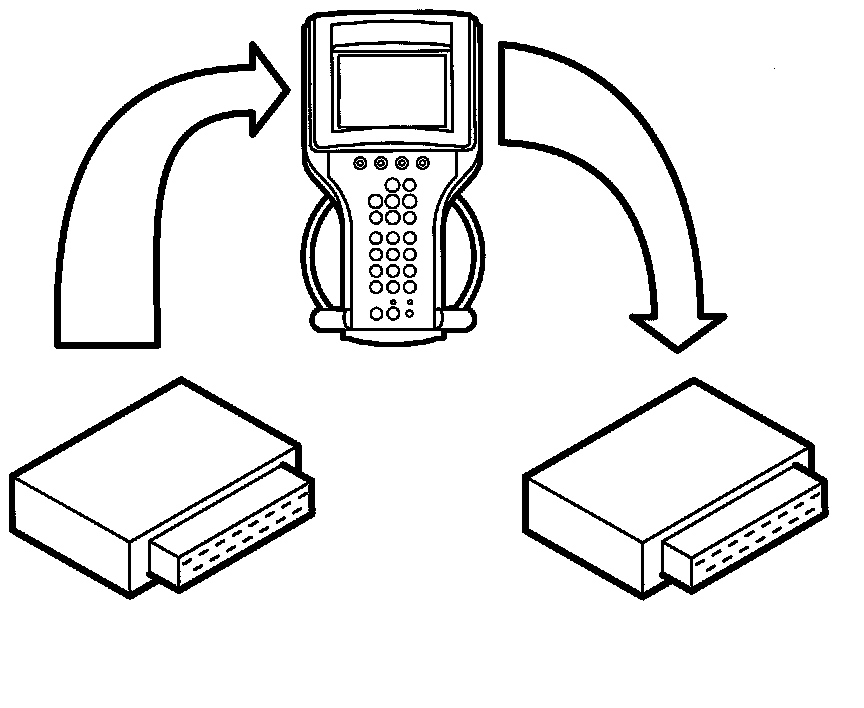

See "Procedure after fitting the control module"
