B1016 00 - 01

B1016 00

Control Module not Added







Fault symptom
- Control module not configured.

On-board diagnosis

Type of diagnosis:
- Each time ignition is switched OFF and after VIN programming.

Enable criteria:
- Ignition ON.
- Starter motor cranking or engine running.

Fault criteria:
- Control module not configured.

Diagnostic help
- Control module was not added.

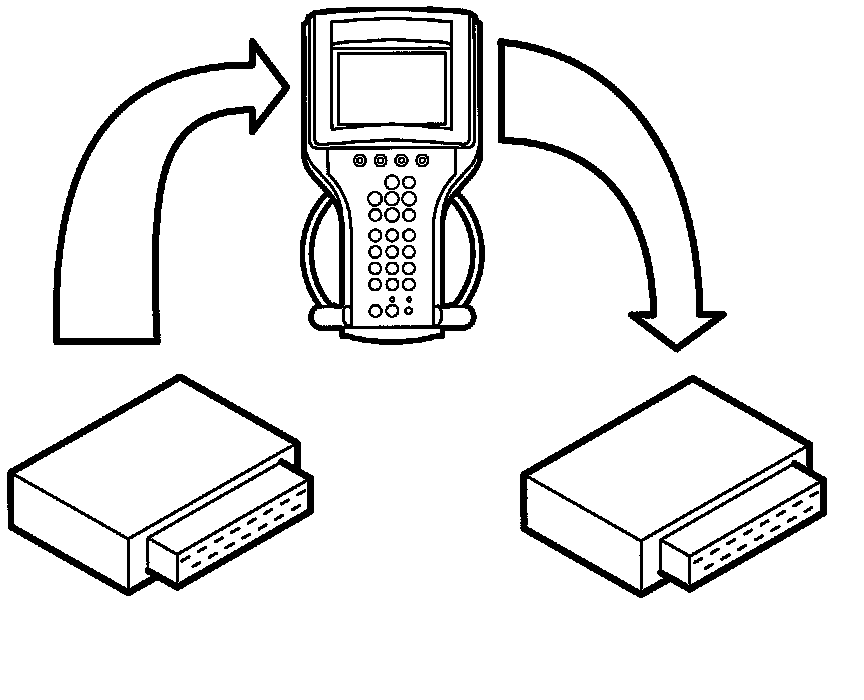

- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
