B1010

B1010 08

Position Sensor, Invalid Position







Fault symptom

Enable criteria:
- Ignition ON.
- Soft top opening/closing activated

Fault criteria:
- One of the position sensors is incorrectly positioned in comparison with the other position sensors.

System reaction to a fault:
- Control module switches off soft top operation

Diagnostic help

Diagnosis regards:

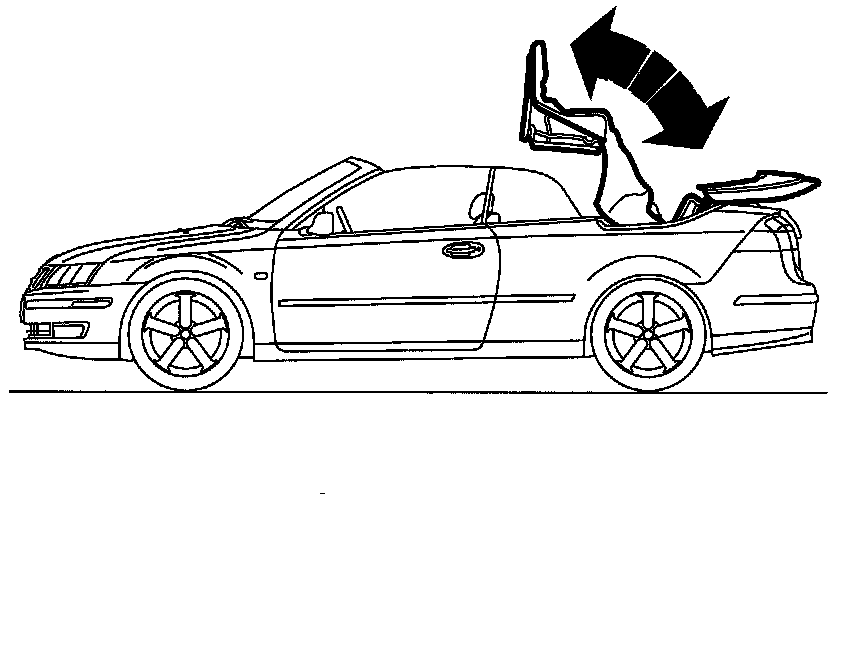

- The soft top is operated in sequences. Each sequence must begin with the sensors in a position that matches the movement pattern.
- Possible message in SID
- Soft top cannot be operated

On-board diagnosis

Type of diagnosis:
- Continuous
- Soft top cover up

Functions in the diagnostic tool related to the fault:

Test value:
- 1st Bow Locked
- 1st Bow Ready to Latch
- Tonneau Cover Latched Left
- Tonneau Cover Latched Right
- Soft Top Stowage Up
- 6th Bow Up
- 6th Bow Latched Left
- 6th Bow Latched Right
- Main Cylinder Up
- Main Cylinder Down

Other
- Sensor Test
(See also description of readings/activations in diagnostic tool).
