B1008 41 - 02

B1008 41

Control Module not Added







Fault symptom
- Memory functions not working

On-board diagnosis

Type of diagnosis:
- During each initiation and after each programming

Enable criteria:
- When seat is activated

Fault criteria:
- Control module not programmed.

System reaction to a fault:
- No memory functions work

Diagnostic help

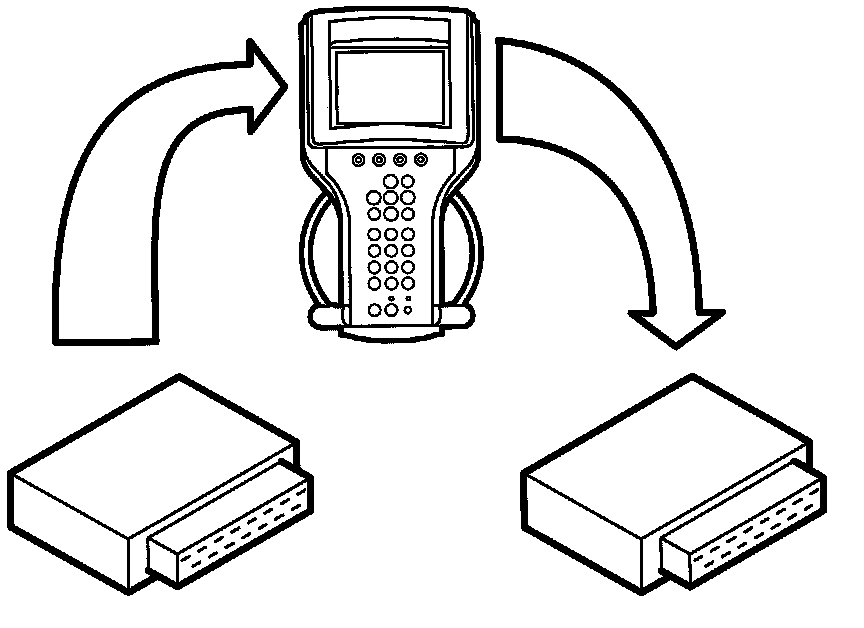

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
