B1008 41 - 01

B1008 41

Control Module not Added







Fault symptom
- Control module outputs switched off.
- Central locking, window lifts and door mirrors out of order.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module not configured.

System reaction to a fault:
- No express function.
- Electric window lift jerks during operation.

Diagnostic help
- Control module was not added.

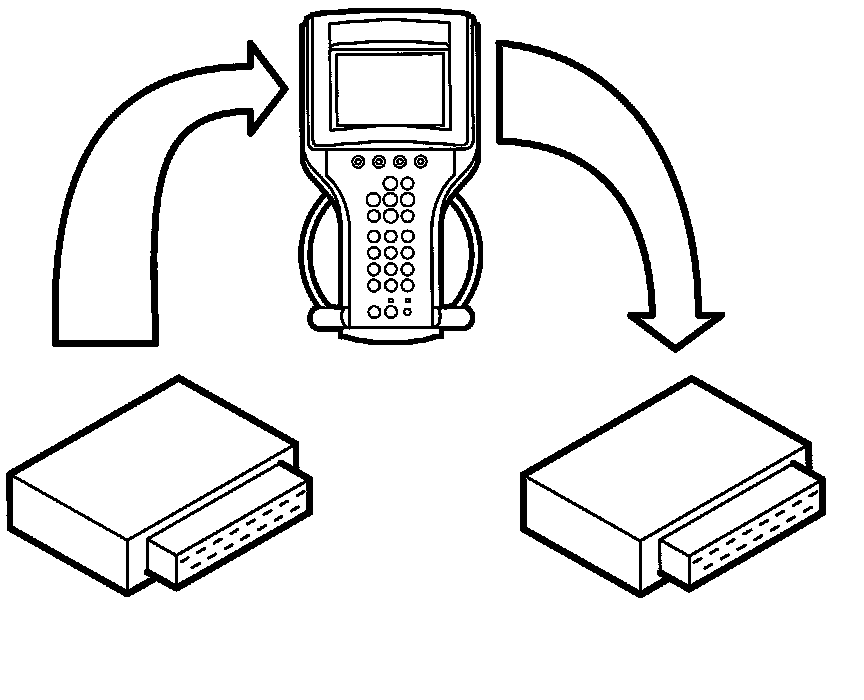

- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
