B1001 67

B1001 67

Control Module not Added







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- The vehicle is equipped with a wiper blade intended for use with a rain sensor, but is not programmed for this.

System reaction to a fault:
- None

Diagnostic help

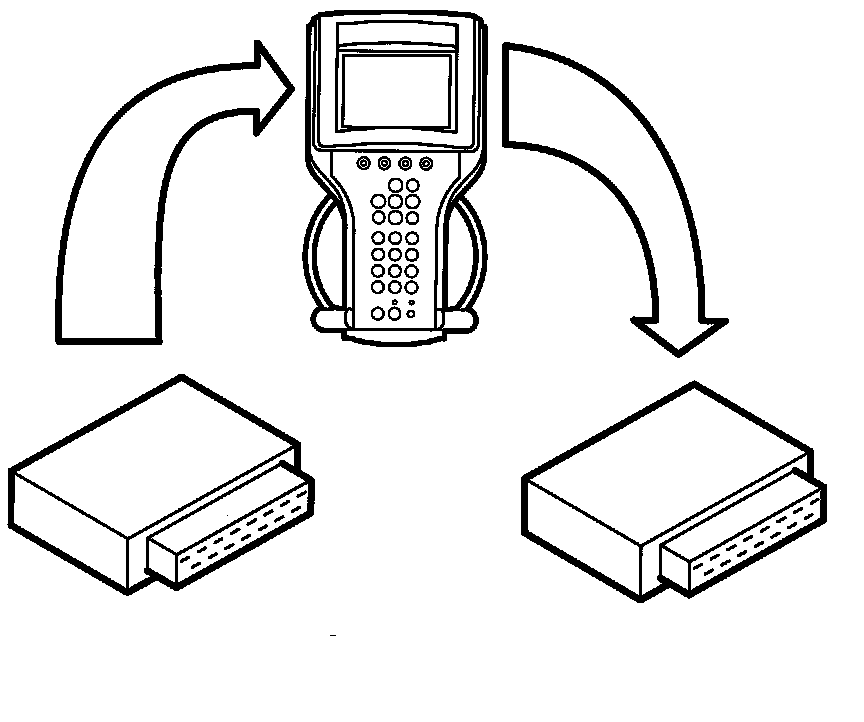

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
