B1001 46 - 05

B1001 46

Control Module not Added







On-board diagnosis

Type of diagnosis:
- Diagnostics runs each time the control module becomes active and when chassis programming has been carried out.

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module not programmed.

System reaction to a fault:
- None

Diagnostic help
- Control module was not added.

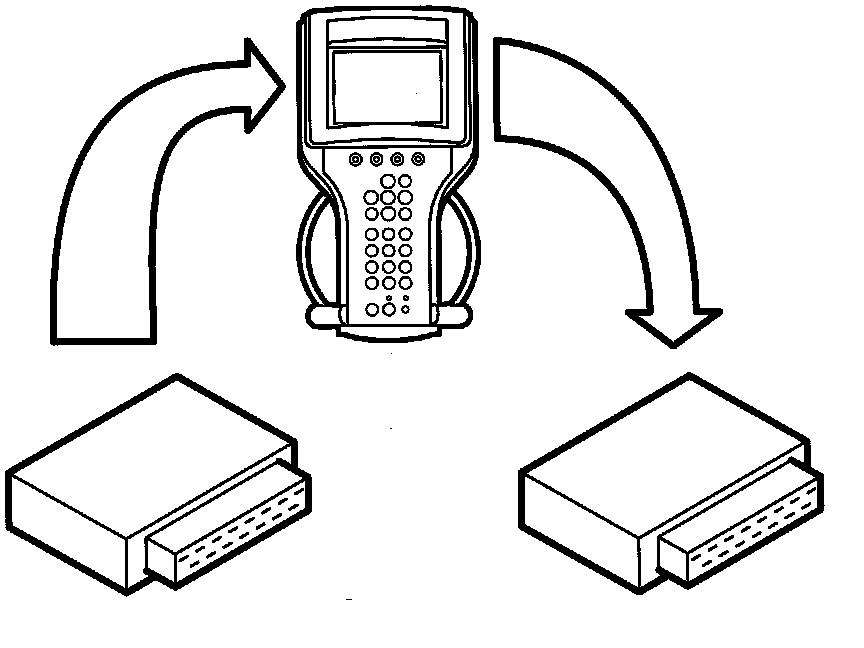

- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
