B1001 46 - 03

B1001 46

Control Module not Added







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics run when ignition is ON.

Fault criteria:
- Control module not configured.

System reaction to a fault:
- The control module sends out the bus message that it is not programmed. De pending on whether or not the control module has a PIN code programmed, immobilizer-related functions are switched off.

Diagnostic help

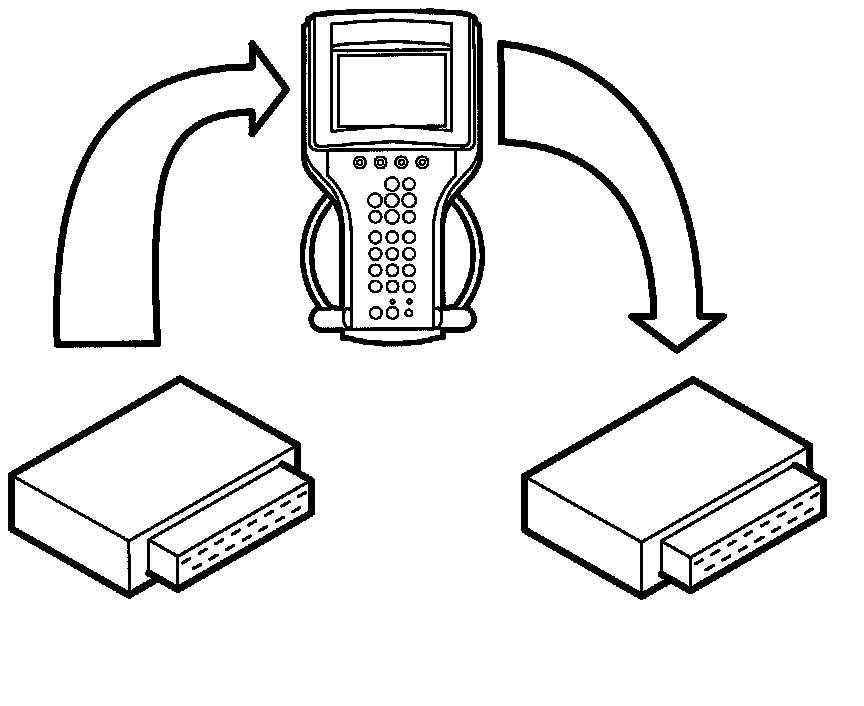

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
