B1001 46 - 02

B1001 46

Control Module not Added







Fault symptom
- Messages shown in SID.
- Headlamp beam adjustment not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics run when ignition is ON.
- Xenon lights on.

Fault criteria:
- No vehicle type programmed.

System reaction to a fault:
- Headlamp beam adjustment is switched off.
- Headlamp reflectors adjusted to a lower position.

Diagnostic help

IMPORTANT: See "Safety and handling directions, xenon headlamps".
- Refer to document, "Calibration of AHL control modules".

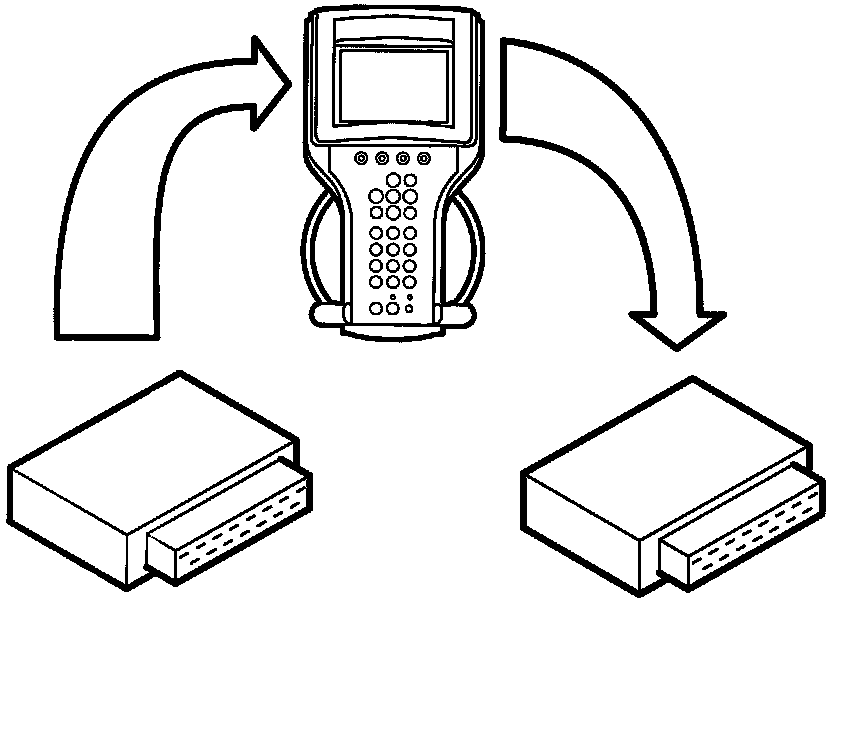

- See "After fitting a control module" under fault diagnosis, general.
