B1001 46 - 01

B1001 46

Control Module not Added







Fault symptom
- Airbag warning lamp is lit

On-board diagnosis

Type of diagnosis:
- Diagnostics is carried out once each time the ignition is switched on.

Enable criteria:
- Ignition ON.

Fault criteria:
- The control module has not been configured during installation

System reaction to a fault:
- No function in the Airbag system
- Airbag warning lamp is lit

Diagnostic help
- Control module was not added.

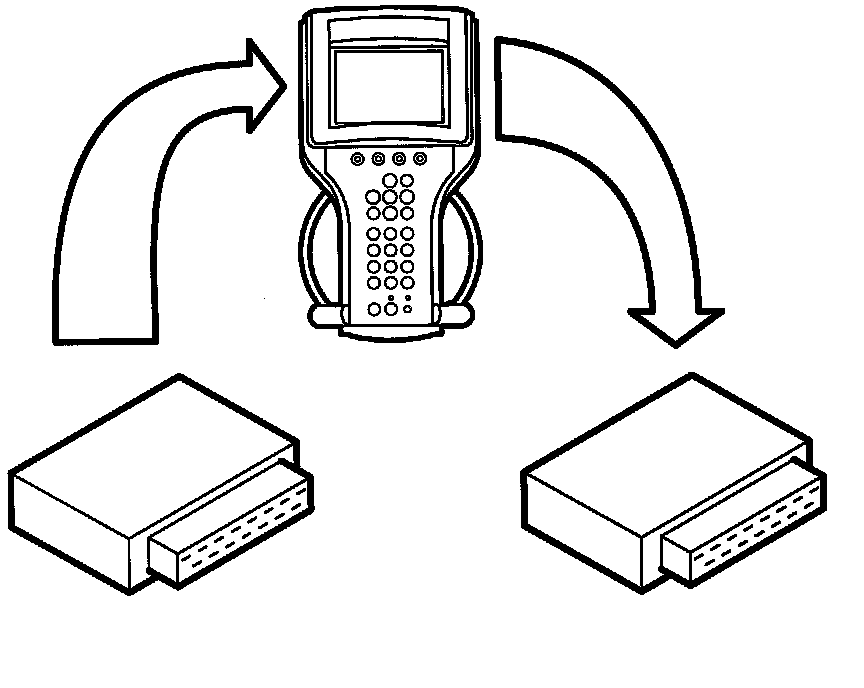

- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
