B1001 41 - 13

B1001 41

Control Module Not Programmed







Fault symptom
- No memory functions work

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- When seat operation is permitted.

Fault criteria:
- The control module is not EOL programmed.

System reaction to a fault:
- None

Diagnostic help

Diagnosis regards:

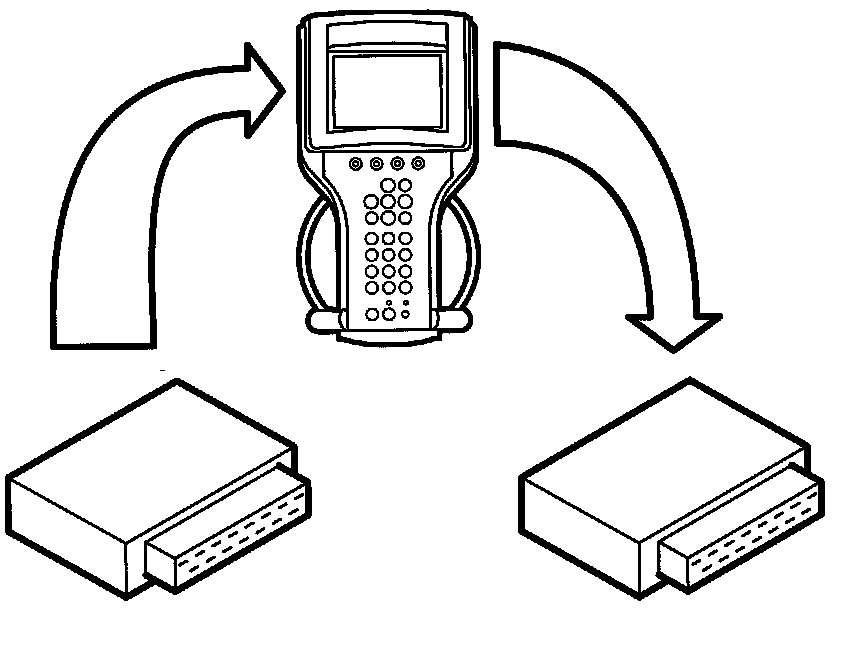

- Control module was not added.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
