B1001 41 - 10

B1001 41

Control Module not Added







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Diagnostics runs each time the control module is active and when programming has been carried out.

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module was not added.

System reaction to a fault:
- The control module uses preprogrammed values.

Diagnostic help
- Control module was not added.

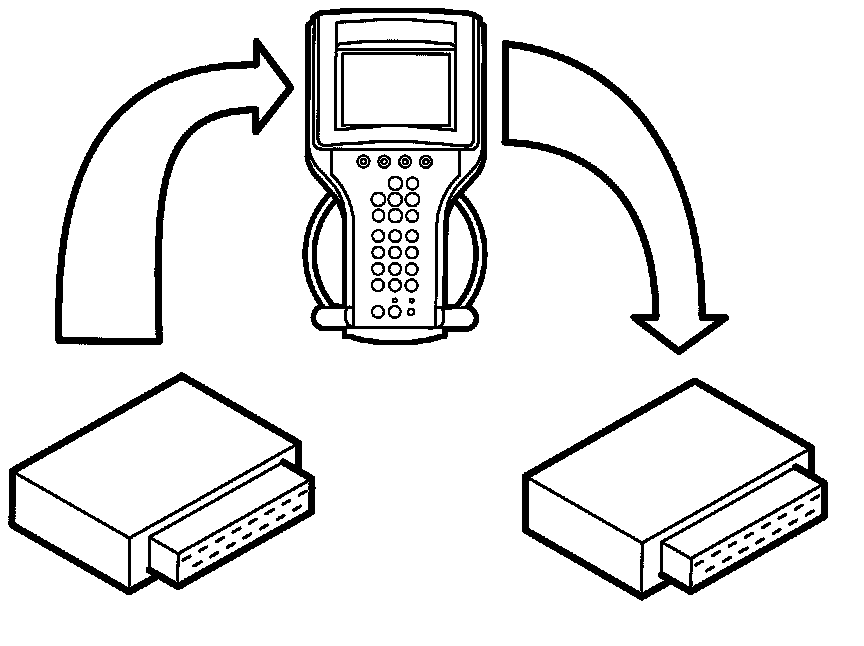

- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
