B1001 41 - 06

B1001 41

Control Module not Added







Fault symptom
- No function

On-board diagnosis

Type of diagnosis:
- Once per "wake-up".

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module not added.

Diagnostic help

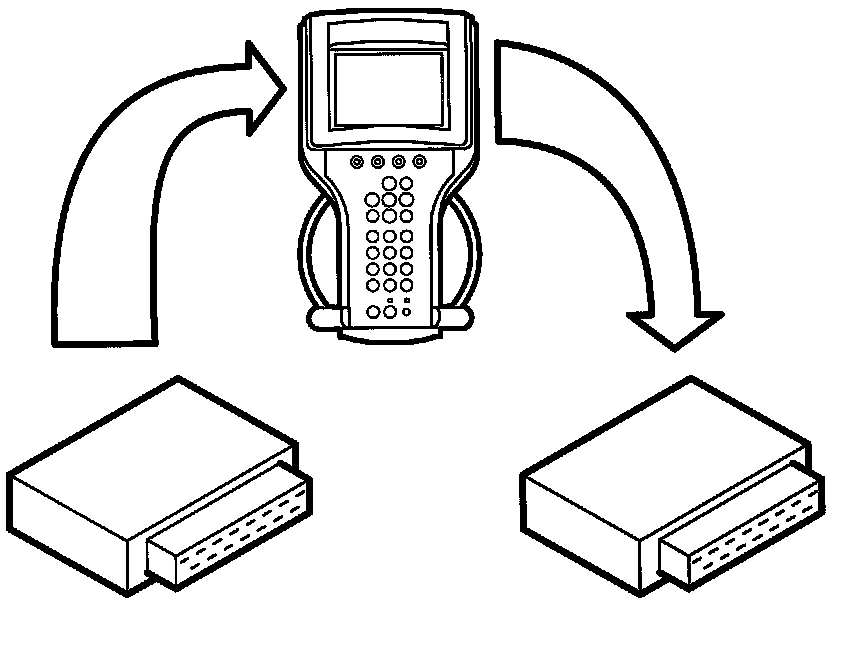

- Control module was not added.
- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
