B1001 41 - 03

B1001 41

Control Module not Added







Fault symptom
- Engine does not start.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Diagnostics runs each time the control module is active and when programming has been carried out.

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- Control Module not Added

System reaction to a fault:
- The control module does not allow starter motor cranking.

Diagnostic help

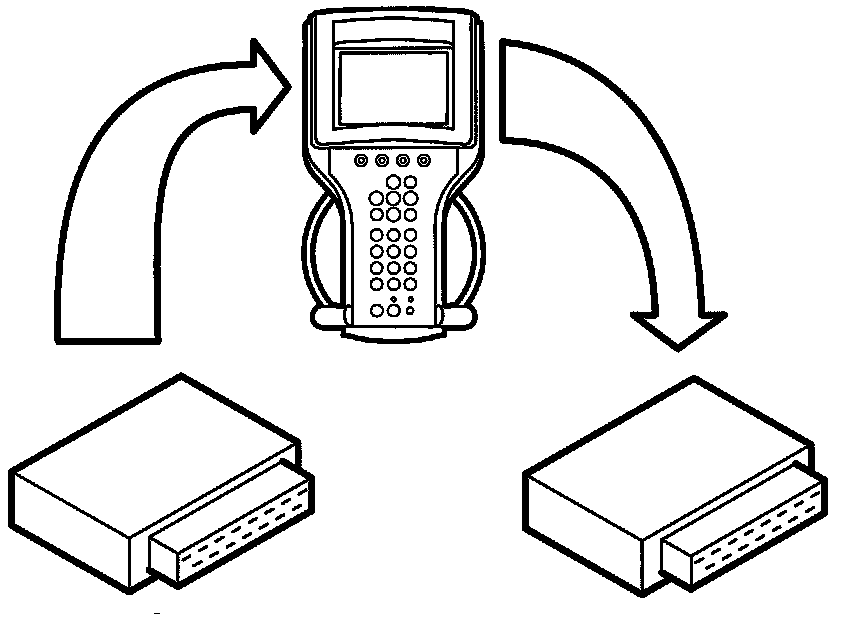

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
