B1000 71

B1000 71

Control Module. Internal Fault







Fault symptom
Malfunction in one of the following systems:
- DVD unit.

On-board diagnosis

Enable criteria:
- Ignition ON.

Fault criteria:
- Internal control module fault

Diagnostic help

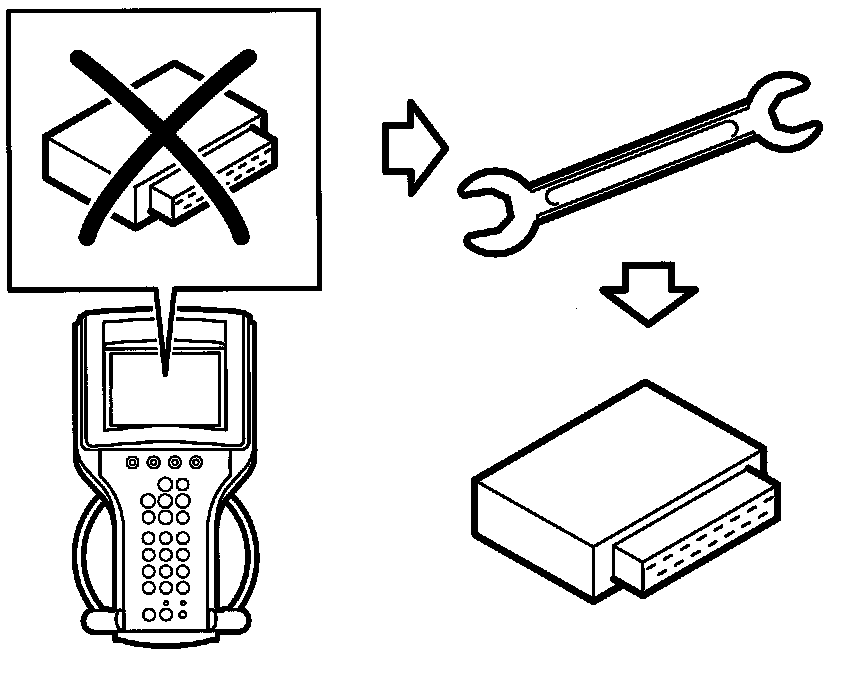

- Replace ECU
- See "Procedure for control module replacement"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
