B1000 63

B1000 63

Control Module. Internal Fault







Fault symptom
- Readout mechanism not functioning.

On-board diagnosis


Enable criteria:
- Ignition ON.

Fault criteria:
- Eject button pushed for more than 8 seconds.

System reaction to a fault:
- Internal control module fault

Diagnostic help

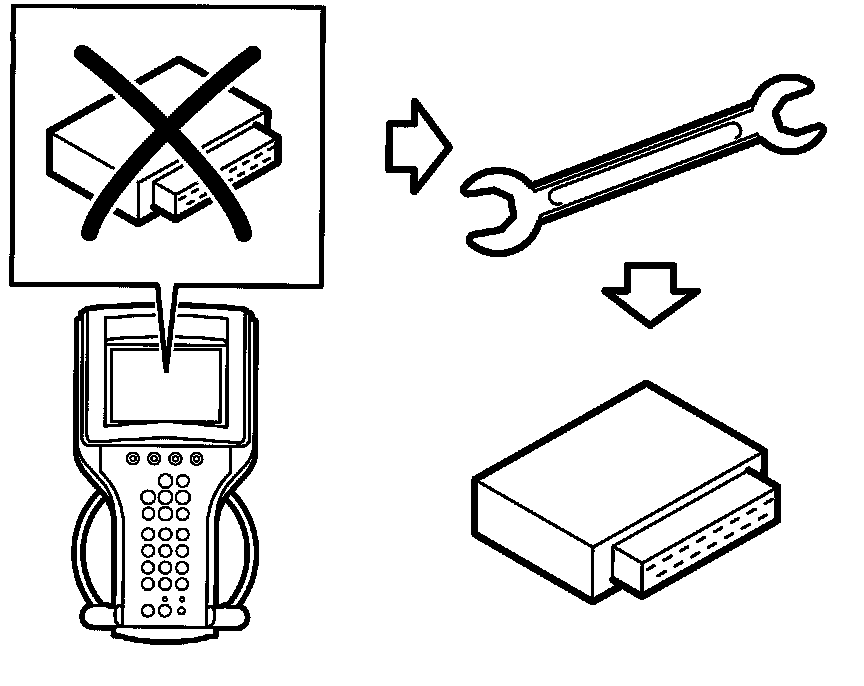

- Change the control module.
- See "Procedure for control module replacement"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
