B1000 57 - 02

B1000 57

Control Module. Internal Fault







On-board diagnosis

Type of diagnosis:
- Diagnostics runs each time a message is sent.

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module has detected an internal fault.

Diagnostic help

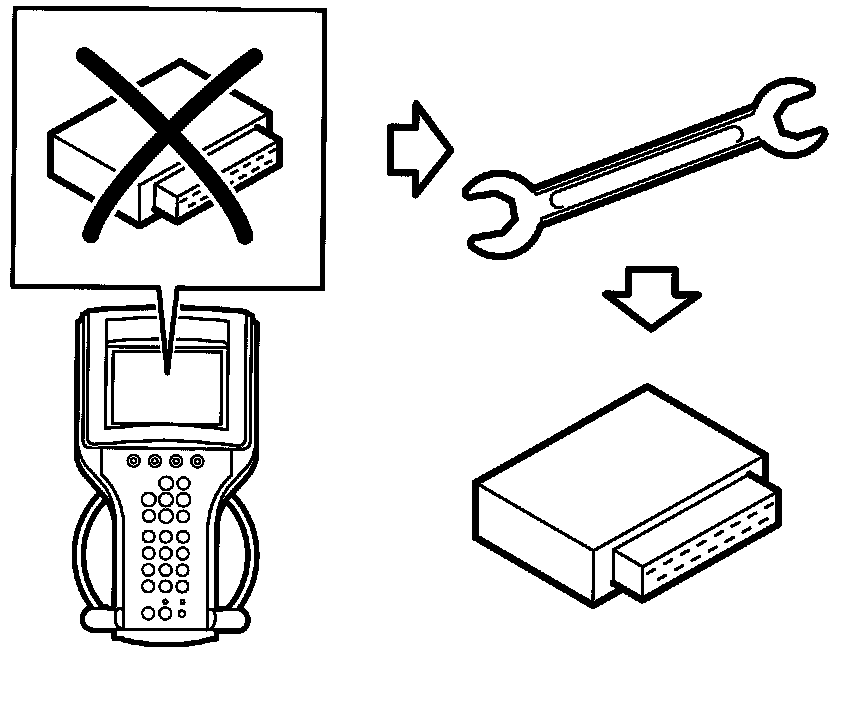

- Change the control module.
- See "Procedure for control module replacement"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
