B1000 39

B1000 39

Control Module. Internal fault







On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics performed when control module goes to standby.
- The diagnosis is carried out each time the car is locked/unlocked by the remote control.

Fault criteria:

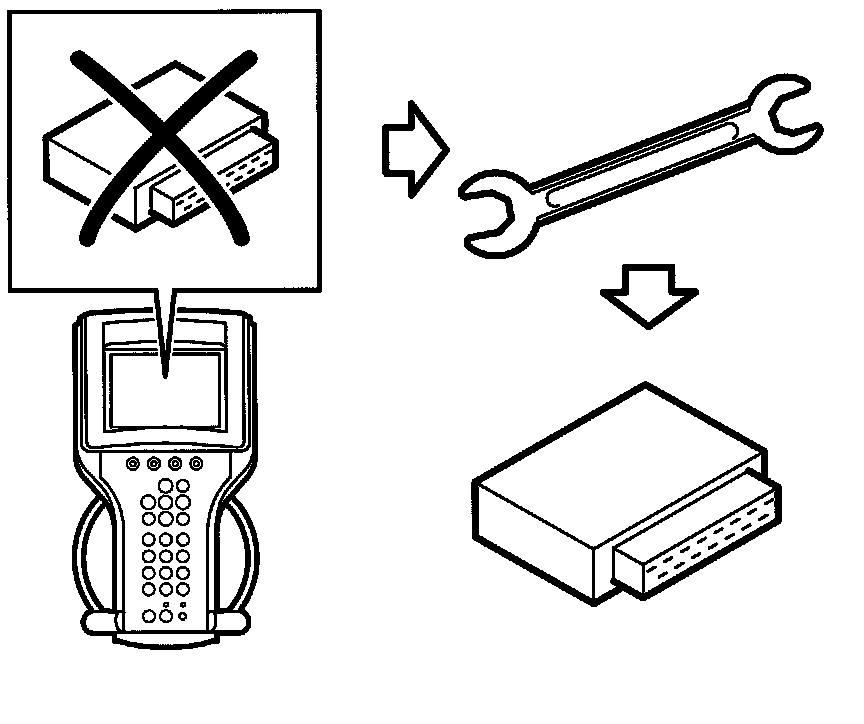

- Control module has detected an internal fault.

Diagnostic help
- Prior to software version 12800185, a DTC could be generated if the speed exceeded 5 km/h after turning the ignition key to LOCK. Carry out SPS programming if the software is older than software version 12800185.
- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
