B1000 37 - 03

B1000 37

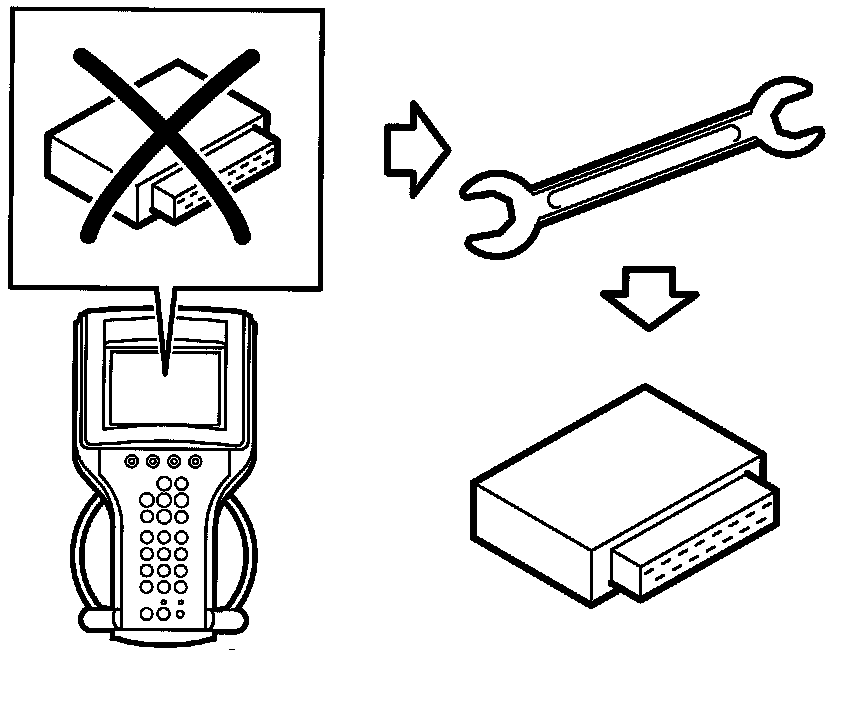

Control Module. Internal Fault







On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics run when ignition is ON.

Fault criteria:
- Control module on-board diagnostics has detected a "Timeout" fault.

System reaction to a fault:
- None

Diagnostic help
- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
