B1000 36 - 17

B1000 36

Control Module. Internal Fault







Fault symptom
- Comfort mode changed.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- When new data written to memory.

Fault criteria:
- Control module on-board diagnostics has detected a EEPROM error.

System reaction to a fault:
- Basic value from ROM used.

Diagnostic help

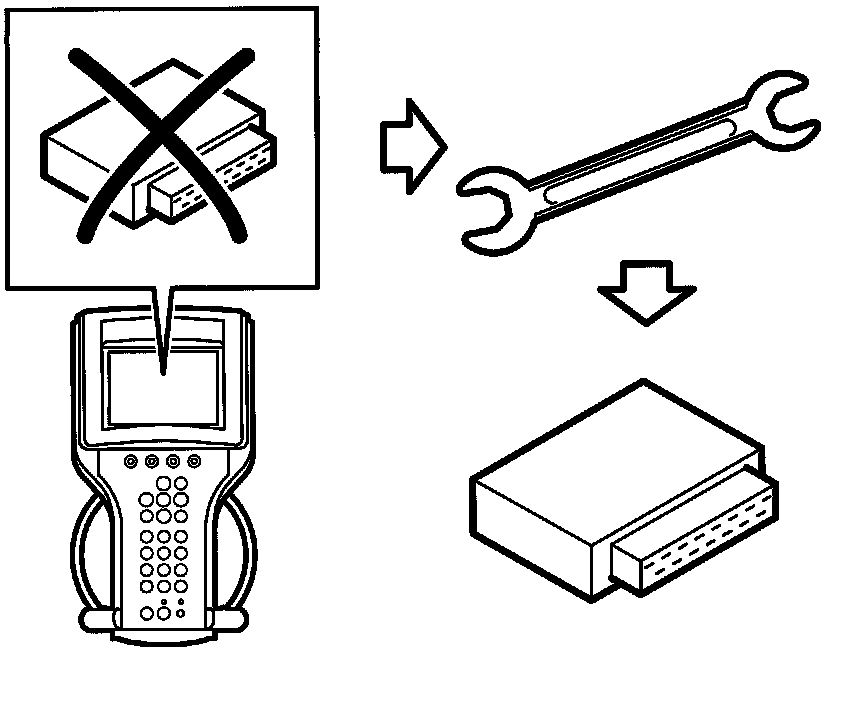

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.
- Change the control module.

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the sunroof internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
