B1000 36 - 13

B1000 36

Control Module. Internal Fault


On-board diagnosis







Type of diagnosis:
- When new data written to memory.

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module on-board diagnostics has detected a EEPROM error.

Diagnostic help

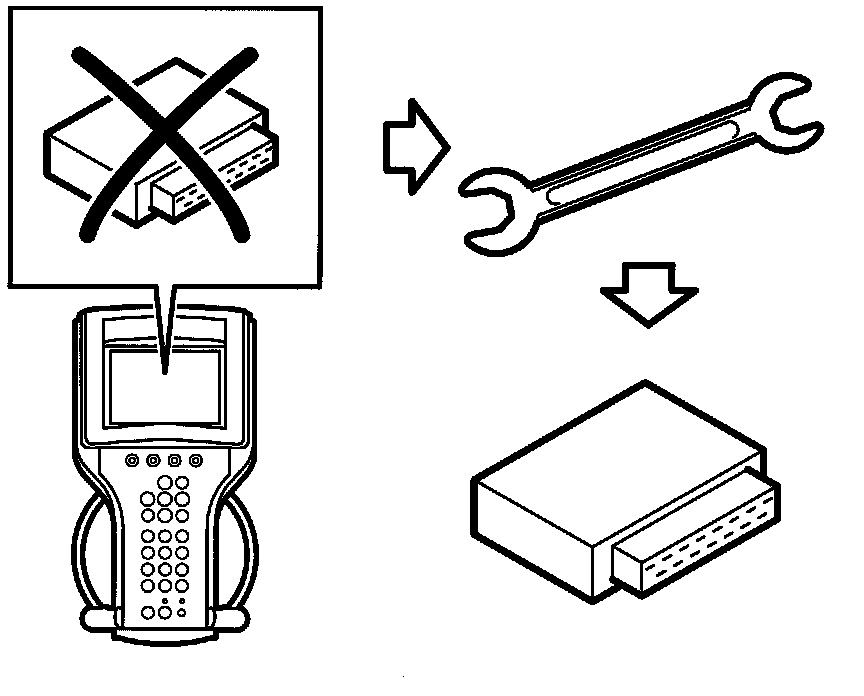

- Change the control module.
- See "Procedure for control module replacement"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
