B1000 36 - 12

B1000 36

Malfunction in one of the following systems:

DVD unit.







On-board diagnosis


Enable criteria:
- Ignition OFF.
- Starter motor cranking or engine running.

Fault criteria:
- Control module on-board diagnostics has detected a EEPROM error.

System reaction to a fault:
- Malfunction in one of the following systems:
- DVD unit.

Diagnostic help

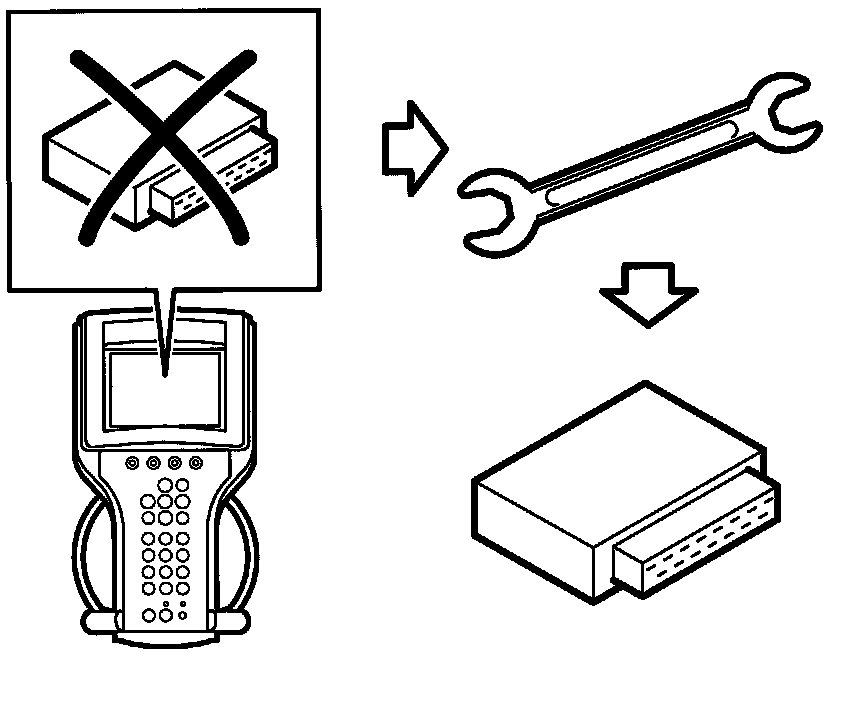

- Replace ECU
- See "Procedure for control module replacement"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
