B1000 36 - 10

B1000 36

Control Module. Internal Fault







Fault symptom
- Incorrect end position (electric window lift).

On-board diagnosis

Type of diagnosis:
- Diagnostics run each time control module "wakes".

Enable criteria:
- When new data written to memory.

Fault criteria:
- Control module on-board diagnostics has detected a EEPROM error.

System reaction to a fault:
- Basic value from ROM used.

Diagnostic help

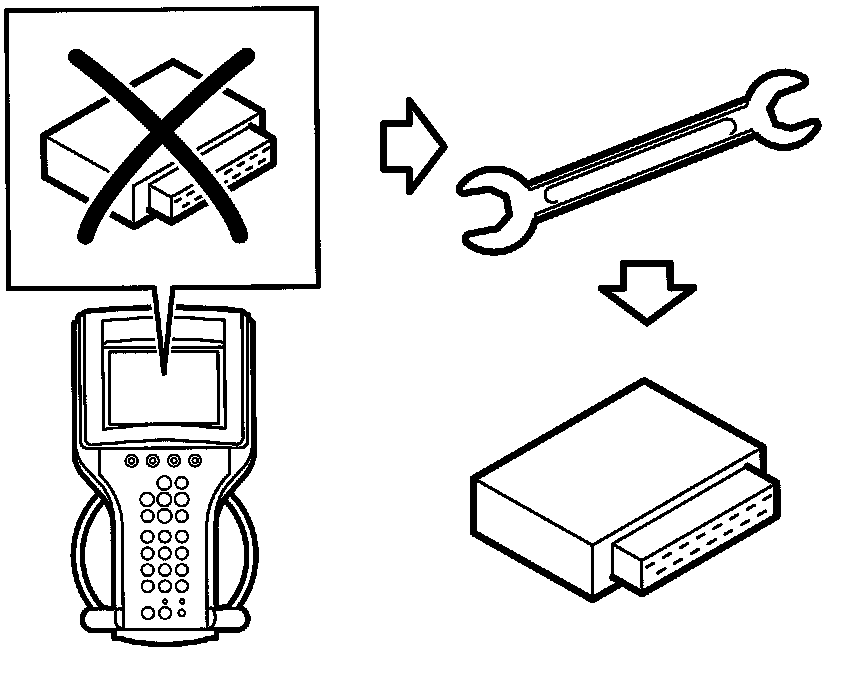

- Change the control module.
- See "Procedure for control module replacement"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
