B1000 36 - 09

B1000 36

Control Module. Internal Fault







Fault symptom
- No function

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module on-board diagnostics has detected a EEPROM error.

Diagnostic help

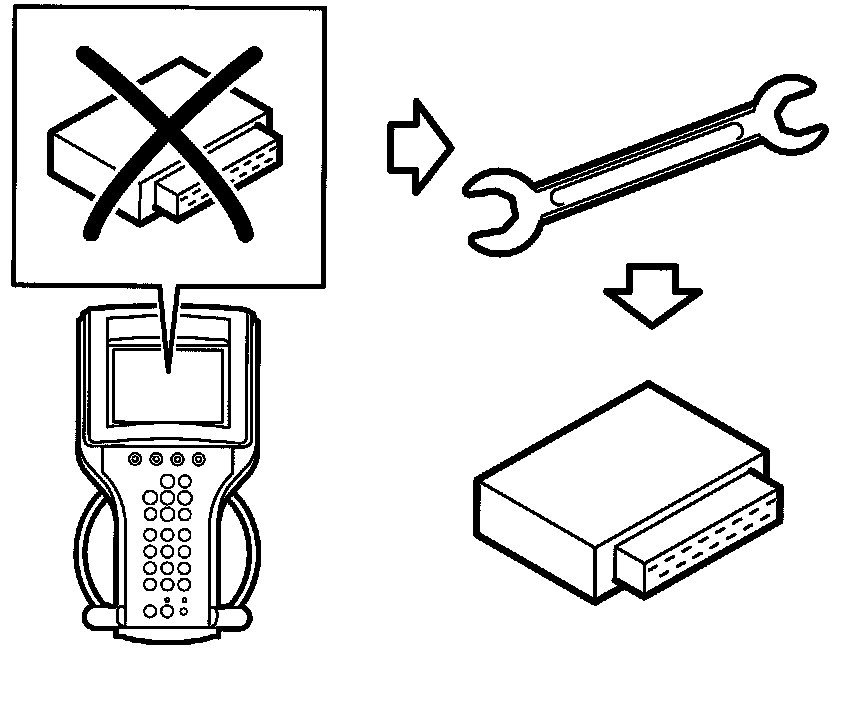

- Replace ECU
- See "Before changing a control module".

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
