B1000 35 - 15

B1000 35

Control Module. Internal Fault







On-board diagnosis

Type of diagnosis:
- Diagnostics run each time control module "wakes".

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module on-board diagnostics has detected a ROM error.

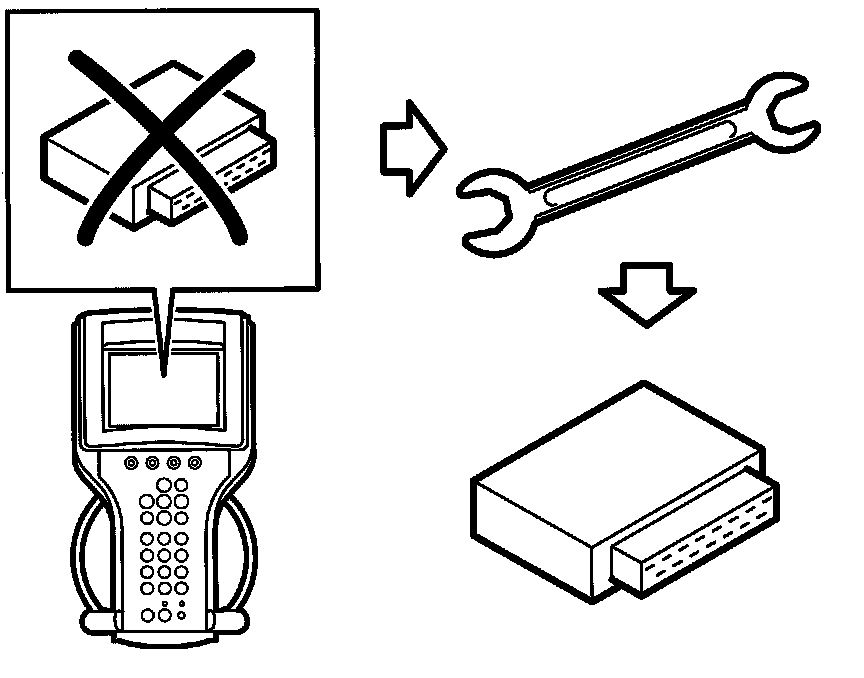

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove".
