B1000 34 - 19

B1000 34

Control Module. Internal Fault







Fault symptom
- Seat cannot be operated.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module on-board diagnostics has detected a RAM error.

System reaction to a fault:
- Seat cannot be operated.

Diagnostic help

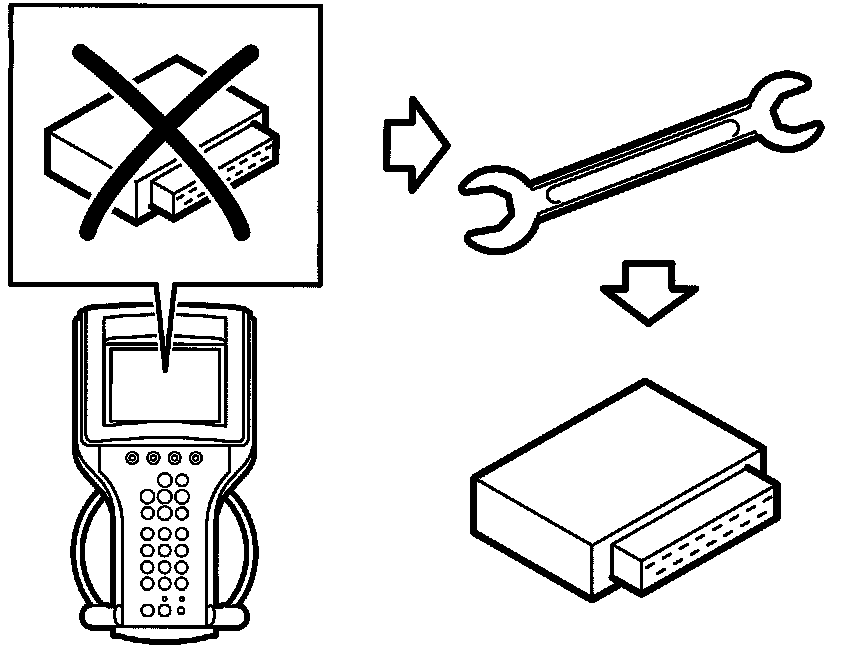

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Diagnosis regards:
- To find electrical faults in the internal electronics of the seat.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
