B1000 34 - 18

B1000 34

Control Module. Internal Fault







Fault symptom
- Messages shown in SID.
- Soft top cannot be operated

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics run when ignition is ON.

Fault criteria:
- Control module on-board diagnostics has detected a RAM error.

System reaction to a fault:
- Soft top cannot be operated

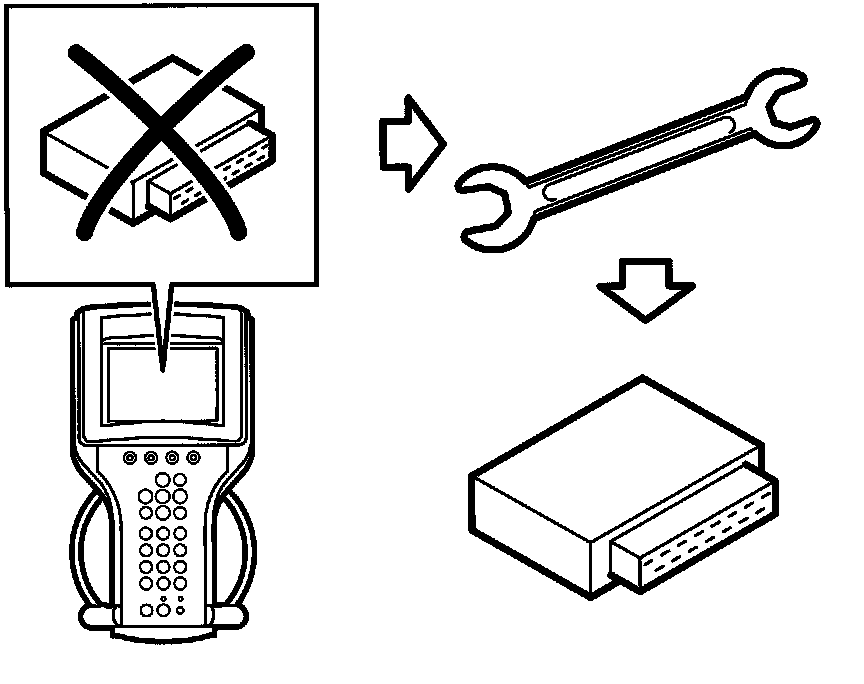

Diagnostic help
- See document "Before removing a control module"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
