B1000 34 - 15

B1000 34

Control Module. Internal Fault







On-board diagnosis

Type of diagnosis:
- Diagnostics run each time control module "wakes".

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module on-board diagnostics has detected a RAM error.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

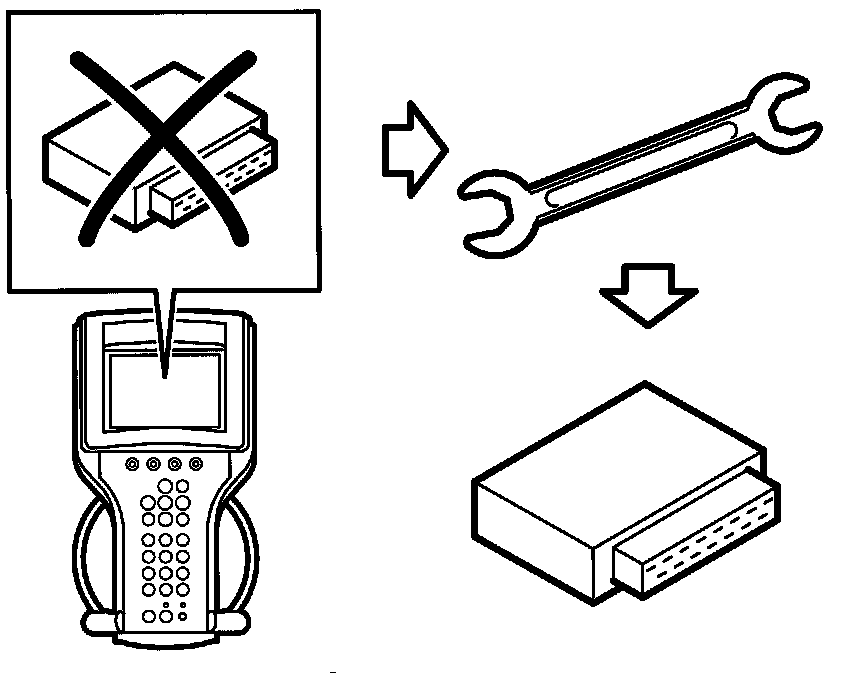

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
