B1000 34 - 14

B1000 34

Control Module. Internal Fault







Fault symptom
- Electric window lift cannot be operated.

On-board diagnosis

Type of diagnosis:
- Diagnostics run each time control module "wakes".

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module on-board diagnostics has detected a RAM error.

System reaction to a fault:
- Electric window lift cannot be operated.

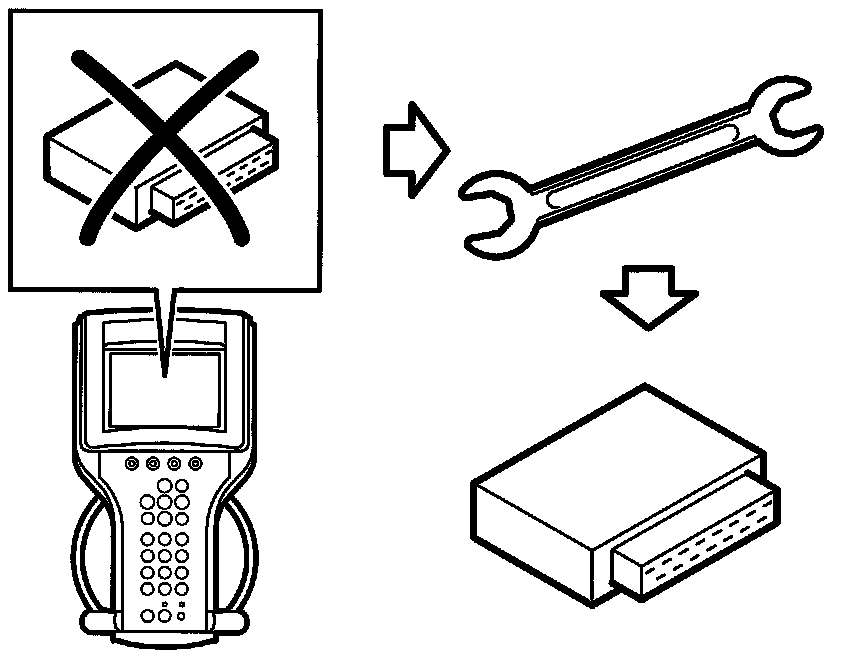

Diagnostic help
- Change the control module.
- See "Procedure for control module replacement"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
