B1000 34 - 10

B1000 34

Control Module. Internal Fault







Fault symptom
Malfunction in one of the following systems:
- DVD unit.

On-board diagnosis

Enable criteria:
- Ignition OFF.
- Starter motor cranking or engine running.

Fault criteria:
- Control module on-board diagnostics has detected a RAM error.

System reaction to a fault:
- Malfunction in one of the following systems:
- DVD unit.

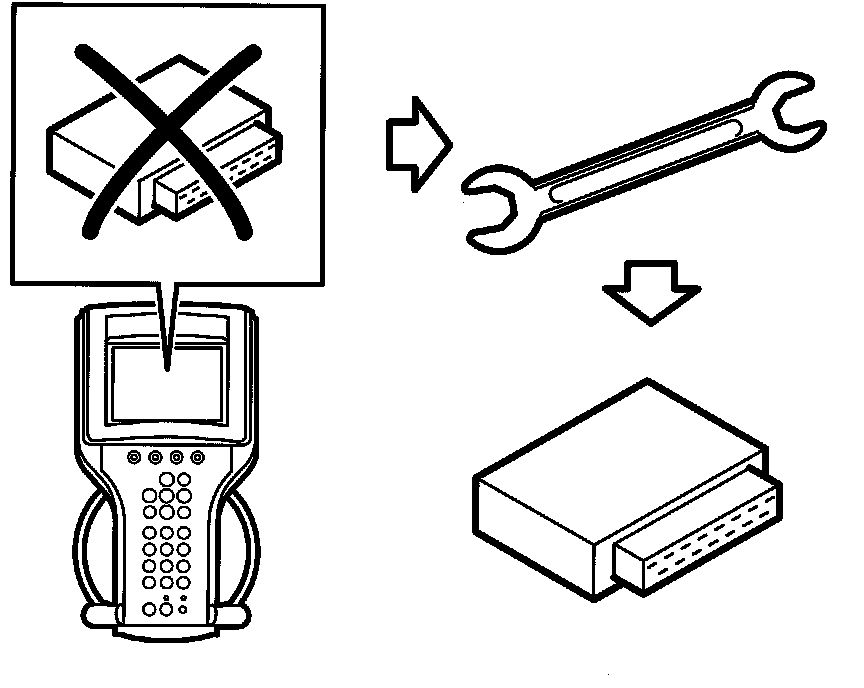

Diagnostic help
- Replace ECU
- See "Procedure for control module replacement"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
