B1000 34 - 04

B1000 34

Control Module. Internal Fault







Fault symptom
- Cannot turn key.
- Engine does not start.
- Steering column lock not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnosis is carried out before the control module goes into standby.
- Diagnosis takes 8 minutes.

Fault criteria:
- Control module on-board diagnostics has detected a RAM error.

System reaction to a fault:
- Steering column lock deactivated.
- The control module does not allow starter motor cranking.

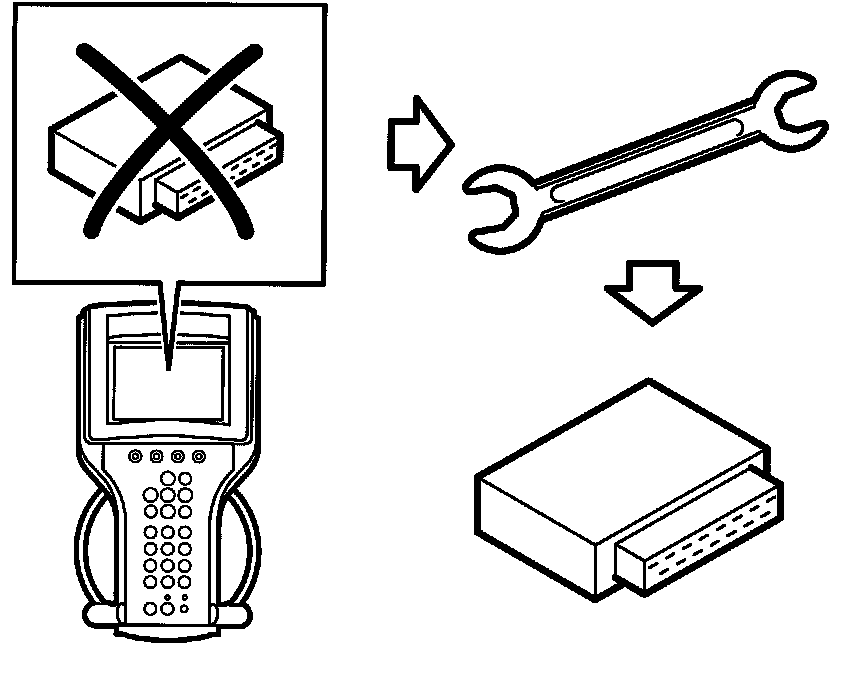

Diagnostic help
- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
